MX Series Transponders
MX Series SITUATIONAL AWARENESS SOLUTIONS
MODE 5 IFF & MODE S TRANSPONDERS | DEFENSE, CIVIL & COMMERCIAL

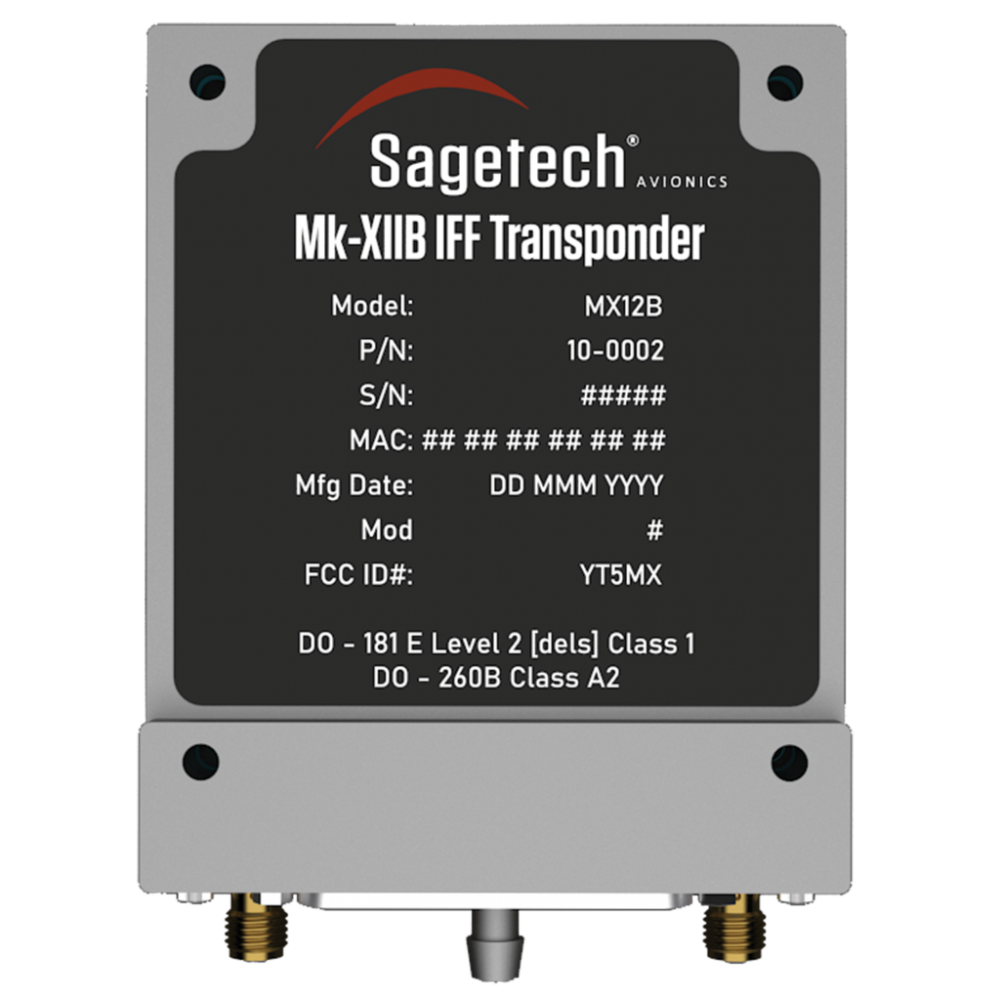

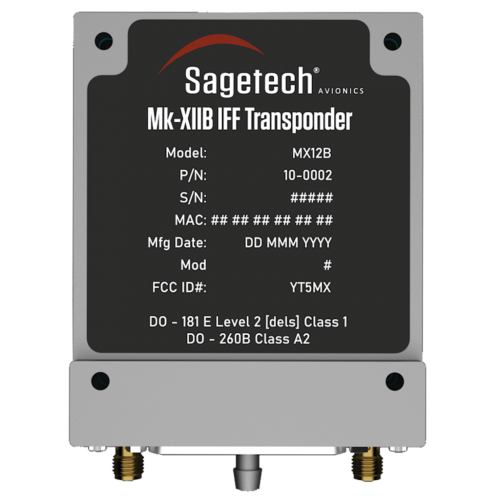

MX12B MODE 5 IFF TRANSPONDER WITH ADS-B IN AND OUT
Sagetech’s next-gen MX12B miniature transponder is the only micro IFF transponder certified to the DoD AIMS Mk XIIB specification. Packed with all the features your program needs, this unit is at least 93% smaller and 6x lighter than traditional certified military Mode 5 IFF transponders.

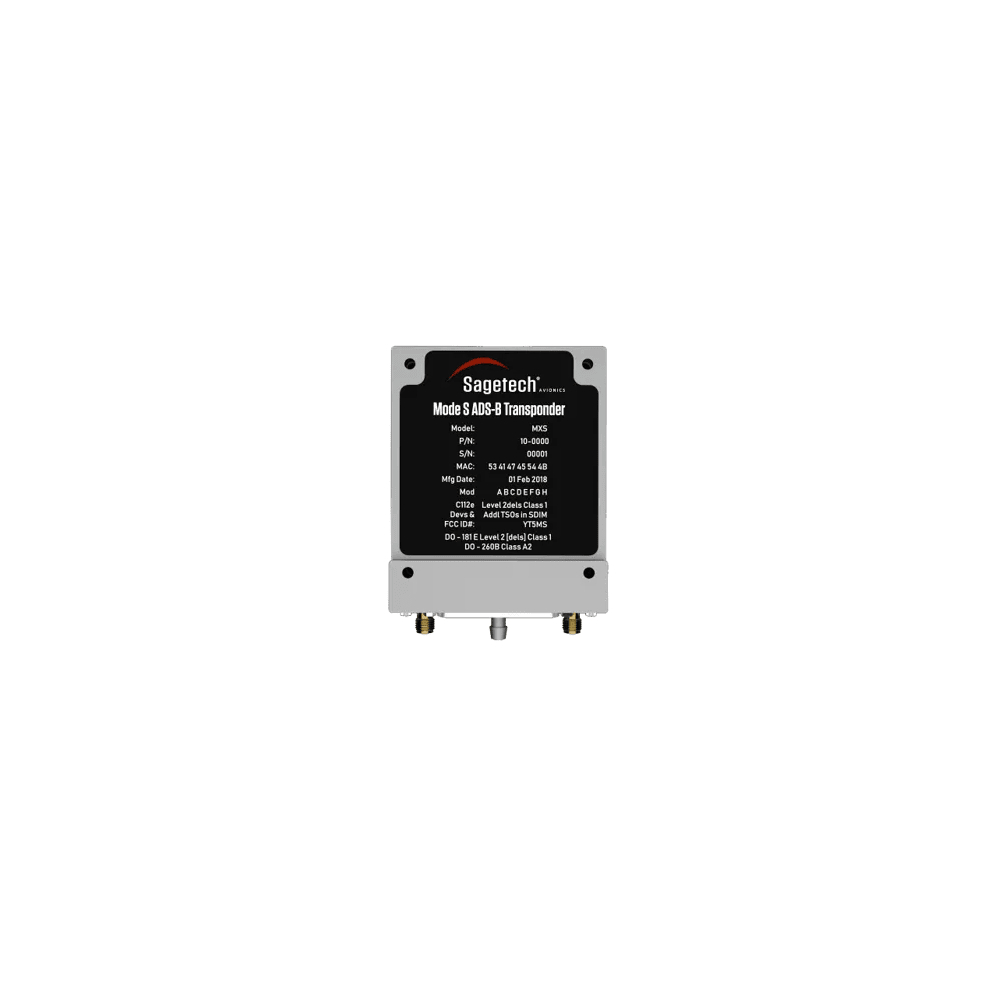

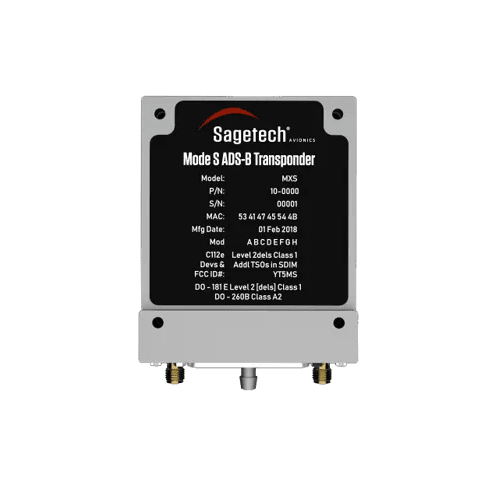

MXS MODE S TRANSPONDER WITH ADS-B IN AND OUT
Sagetech’s next-gen MXS miniature transponder provides Mode S and 1090 MHz ADS-B In/Out for worldwide compliance of your crewed or uncrewed system, all integrated in a single tiny package. Featuring top and bottom monopole antennas, this transponder provides full coverage for the ultimate in visibility and safety. The MXS received FAA Technical Standard Order (TSO) Authorization.
Parameter |
MXSMode S Transponder |
MX12BDoD AIMS Mark XIIBMode 5 Transponder |
|---|---|---|
|
General / Communications |
||
| Operating Altitude | Unrestricted | |
| Cruising Speed | Unrestricted | |
| Transmit Power at SMA | 55 dBm; 316 W | AIMS 17-1000B Standard |
| 1030 Receive Sensitivity | -74 ± 3 dBm | AIMS 17-1000B Standard |
| 1090 ADS-B In Sensitivity | -81 dBm | AIMS 17-1000B Standard |
| Host Serial Communications | Proprietary protocol | |
| Standard | RS-232; RS-422; Ethernet (Point to Point) | |
| BaroAlt Calibration | Up to 85,000 ft | |
| Diversity | Yes | Yes |
| Export Classification | EAR ECCN 7A994 | ITAR |
| Supply Voltage | 14-28 V +/- 4VDC | |
Power |
||
| Power Consumption | Standby (STBY): | 7 W |
| Operating: | 11 W | |
| Nominal Airspace: | 13 W | |
| Max: | 18 W | |
| Power Notes | N/A |
All power values include 3 W for KIV-77 Operation |
Design Objectives (DAL C) |
||
| Transponder Performance Standard (ref: DO-181E) | Level 2dels Class 1 | Level 2dels Class 1 |
| ADS-B Performance Standard (ref: DO-260B) | 1090 MHz Class A2 | |
| Pressure Altitude Standard | SAE AS8003 | |
| Mode S Cert. | RTCA DO-181E | RTCAS DO-181E |
| ADS-B Cert. | RTCA DO-260B | |
| Alt. Encoder Cert. | SAE AS8003 | |
| Mode 5 Cert. | N/A | AIMS Mark XIIB M5L2 |
| Environmental / EMI | RTCA DO-160G, MIL-STD-810G, MIL-STD-461F | |
Physical/Environmental |
||
| Dimensions | 86 x 64 x 25 mm (3.4” x 2.5” x 1.0”) | |
| Mass | 190 g (6.7 oz) | |
| Operating Temperature | -40 to 70 °C | |
| Storage Temperature | -55 to 85 °C | |
| Humidity | Max: 100% non-condensing | |
