XP Series Transponders

XP Series SITUATIONAL AWARENESS SOLUTIONS

MODE A, C, AND S TRANSPONDERS | ADS-B & GPS | CIVIL & MILITARY

Read moreShow less
Description

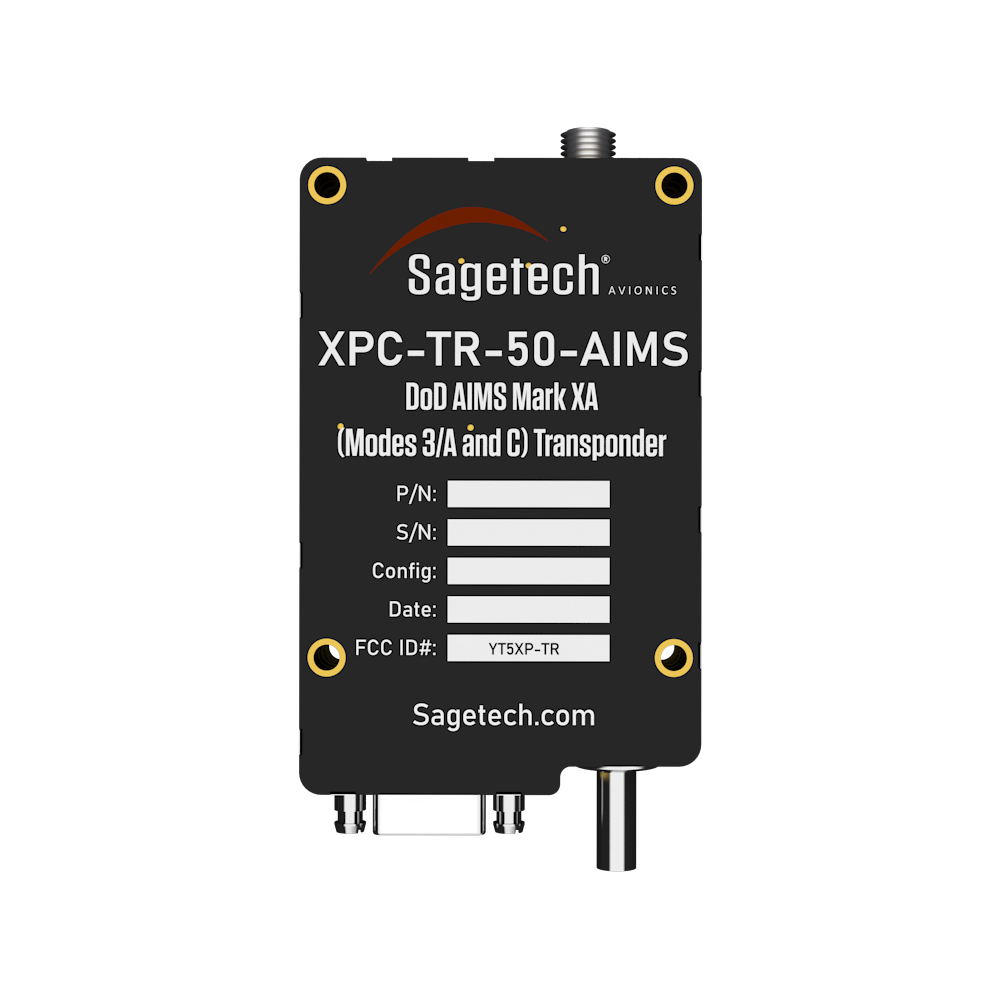

XPC AND XPC AIMS MODE C TRANSPONDERS DOD CERTIFIED WITH AUTOPILOT INTEGRATION

A proven performer for over 1.5M+ mission hours in military applications, the Sagetech XPC and XPC DoD certified AIMS transponders deliver ultra reliability in the lowest SWaP available. The XPC transponders are easy to integrate for exceptional situational awareness on unmanned aircraft.

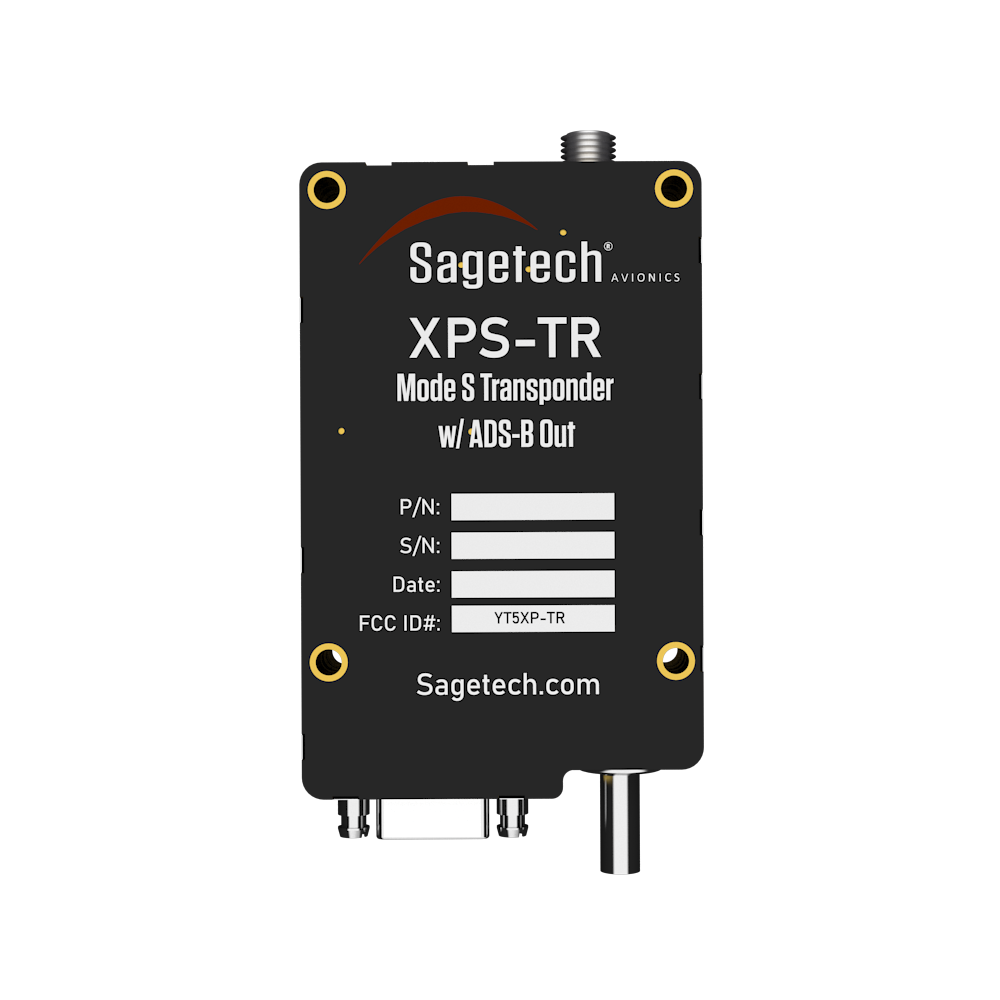

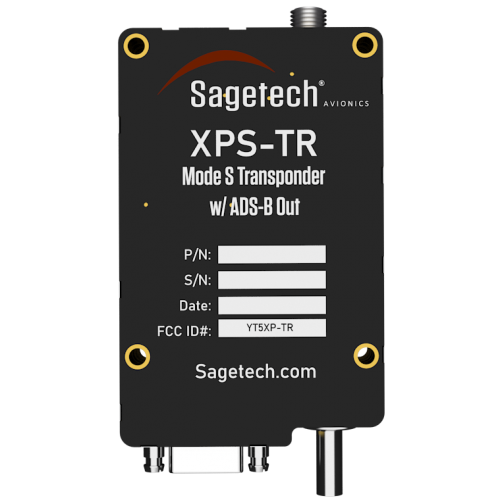

XPS MODE S TRANSPONDER WITH ADS-B OUT

The Sagetech XPS Series transponder delivers ADS-B Out capability with the highest reliability available in a single, tiny, FCC-approved package. With visibility by TCAS, the XPS provides the ultimate in UAV visibility and safety.

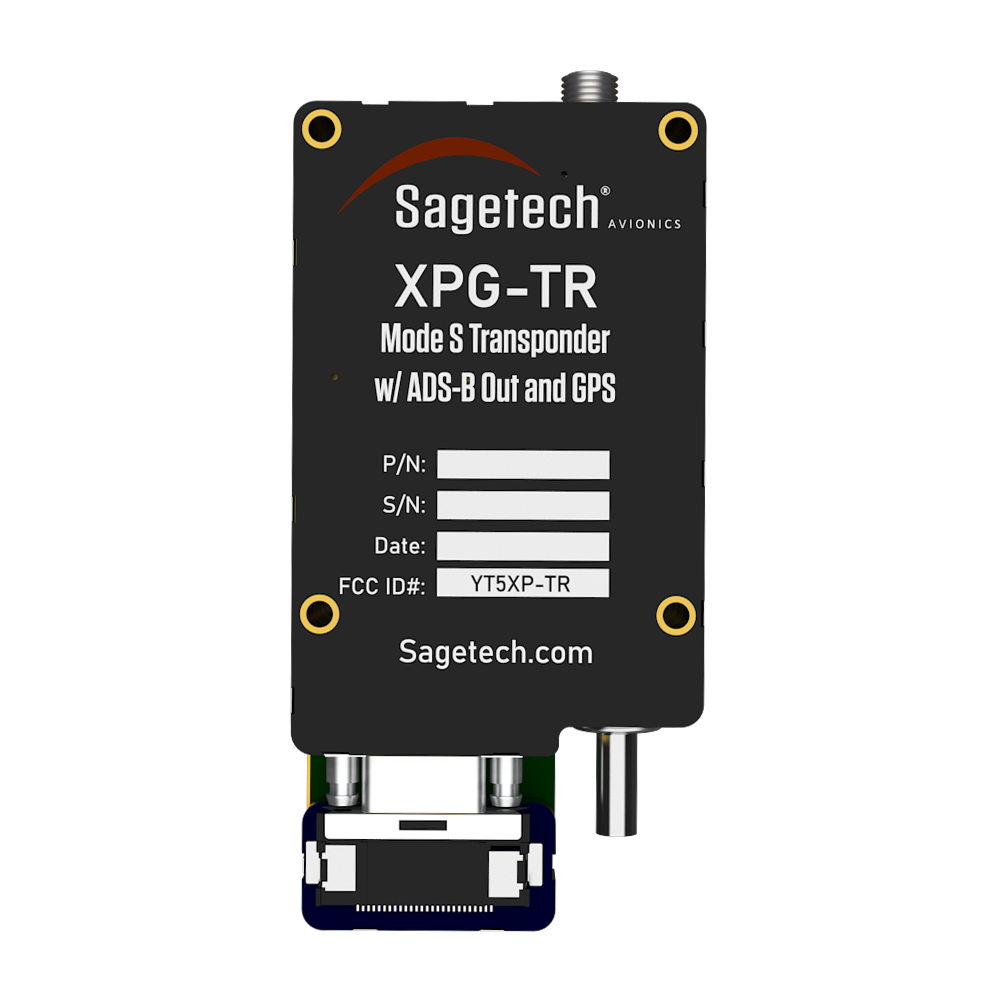

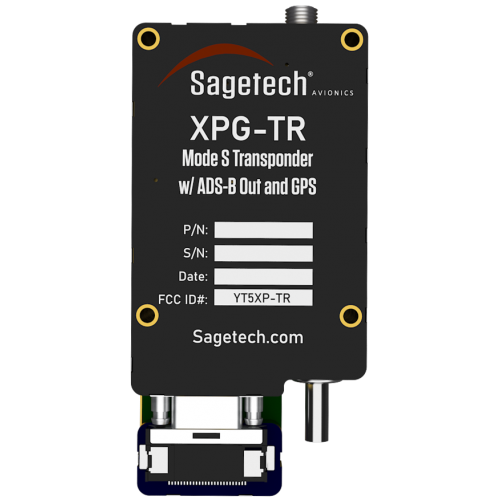

XPG MODE S TRANSPONDER WITH ADS-B OUT AND GPS

The XPG is an all-in-one transponder offering the most visibility in a tiny integrated package. This single unit features Modes A, C, and S, ADS-B Out, plus integrated GPS functionality. The XPG is the only transponder available in its class that can be seen by TCAS.

Parameter

XPC-TR Mode C Transponder

XPC-TR-50 AIMS Mode C Transponder

XPS-TR Mode S Transponder

XPG-TR Mode S Transponder with GPS

General / Communications

Operating Altitude Unrestricted
Cruising Speed Unrestricted Unrestricted 1,000 Knots
Transmit Power 250W nominal
1030 Receive Sensitivity -73 dBm ± 4 dB -74 dBm ± 3 dB -74 dBm ± 3 dB
1090 ADS-B In Sensitivity N/A
ADS-B Out (Extended Squitter) No Yes Yes
RF Impedance 50 Ω
Serial Comms
    Com0 Control Proprietary protocol RS-232 up to 460.8 kbps
    Com2 GPS Input N/A Accord NexNav, NMEA RS-232,
adjustable data rate
N/A
Mutual Suppression Yes Yes No
Pressure Altitude Calibration 20,000 ft (also available in 50,000 and 60,000 ft.)

Power

Export Classification EAR ECCN 7A994
Supply Voltage 10-32 V
Power Consumption (ON &   ALT) 4 Watts (typical) 11 Watts (max) 8 Watts (typical) 14 Watts (max) 8 Watts (typical) 14 Watts (max)
Power Consumption (STBY) < 1 W

Design Objectives

Transponder Performance Standard RTCA DO-144A RTCA DO-181E RTCA DO-181E
    Level N/A 2els 2els
    Class A 1 1
ADS-B Performance Standard N/A RTCA DO-260B RTCA DO-260B
    Class N/A B1S B1S
Pressure Altitude Standards SAE AS392c, SAE AS8003

Physical / Environmental

FCC Part 87 FCC Identifier YT5XP-TR
Dimensions 89 x 46 x 18 mm (3.5 x 1.8 x 0.7 in) 89 x 46 x 18 mm (3.5 x 1.8 x 0.7 in) 102 x 47 x 26 mm (4.0 x 1.8 x 1.0 in)
Mass 100 g (3.53 oz) 100 g (3.53 oz) 147 g (5.19 oz)
Operating Temperature -20 to 70 °C (-4 to 158 °F) -20 to 70 °C (-4 to 158 °F) -20 to 55 °C (-4 to 131 °F)
Storage Temperature -55 to 85 °C (-67 to 185 °F) -55 to 85 °C (-67 to 185 °F) -55 to 80 °C (-67 to 176 °F)
Humidity Max: 95% non-condensing
Read moreShow less
Specifications
XP

Data sheet

Weight 190 g
