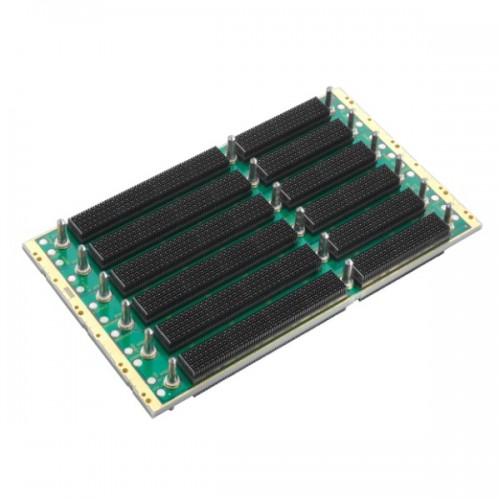

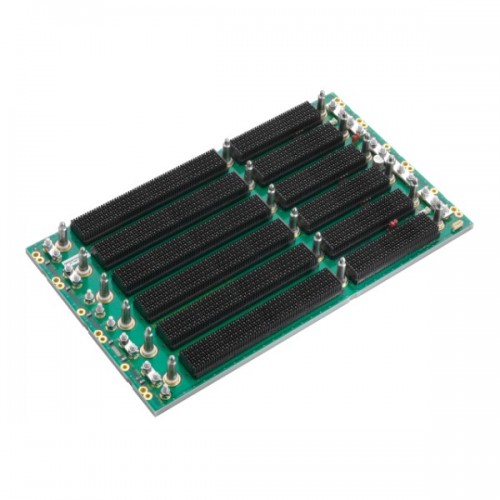

6U VPX – OpenVPX Backplanes
6U VPX – OpenVPX Backplanes
VPX is a broadly defined technology utilizing the latest in a variety of switch fabric technologies in 3U and 6U format blades. OpenVPX is the architecture framework that defines system level VPX interoperability for multi-vendor, multi-module, integrated system environments.
The OpenVPX framework defines clear interoperability points necessary for integration between Module to Module, Module to Backplane and Chassis. OpenVPX recommends, but does not specify development systems to assist evaluation, prototype and development of VPX systems. OpenVPX will evolve and include new fabric, connector and system technology as newer standards are defined.
Our VPX backplanes are hand-made with quality and longevity in mind.
Main Features
- Form Factor: 6U
- Slots: 10, 12, 16, 5, 6
- Slot Pitch: 5HP common
- Topology: Centralized, distributed
- Design: Up PCIe Gen3 /10 GbE
- Base Specification: OpenVPX VITA 65/ VITA 46
- Impedance Controlled: Yes
- PCB Thickness: 5.4 mm
- Connectors: MultiGig RT2 / Velox
- Power Feed: Screw Terminal
