VPX Chassis 10U, 84HP 10-Slots

VPX Chassis 10U/84HP 10 Slots

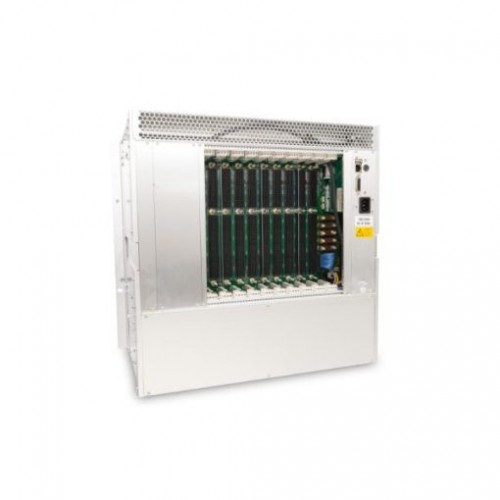

This 10 slot Hartmann Open VPX BKP6-CEN10-11.2.4-4 profile system chassis provides a high performance packaging solution for 6U VPX modules as SBC’s, GPU’s FPGA boards. The 84HP wide, rack-mountable enclosure for vertical mounting of boards is outfitted with two 1000W plug-in VPX power supplies and a 3U bottom mount fan tray.

The system is designed with enhanced EMC features. This rugged yet stylish VPX chassis conforms to mechanical standards IEEE 1101.1 and 1101.10.

Main Features

• Mounting: 19" Rack-mount
• Backplane: OpenVPX backplane, 6U, 10 slot, profile BKP6-CEN10-11.2.4-4, centralized backplane, hosting 9 payloads and 1 integrated switch for PCIe Gen3 & 10GbE with rear I/O
• Fan Tray: Fixed fan tray, 3U
• No. of Fans: 3 (12V, 120mm)
• Airflow: bottom front to top rear
• Power Supply Type: 1000W VPX
• Power Input: 90 – 264VAC , 47 – 63Hz
• No. of Supplies: 2, pluggable
• Output Voltages: 12V/63A, 3.3V/20A, 5V/30A, ±12V/1.5A,
• Power Supply Connector: Included with switch, fuse and filter
• Chassis Height: 10U
• Chassis Width: 84 HP
• Chassis Depth: 283.1 mm
• IEEE: 1101.1 and 1101.10/11
• IEC: 60297-3-101, -102, -103
• Military Shipboard: MIL-STD-810F: 514.5C-15 (vibration)
• Military Highway: MIL-STD-810F: 514.5 C-1 (vibration), 515.5-10 (shock)
• Railway: EN 50155-EN 1373 class 1 B, rolling stock (shock/vibration)
