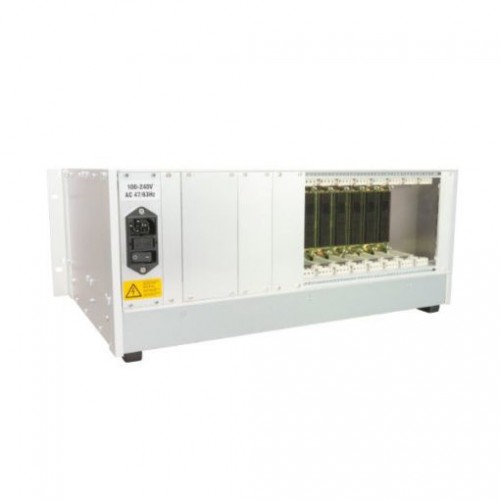

VPX Chassis 4U, 84HP 8-Slots

This 8 slot Hartmann Open VPX BKP3-CEN08-15.2.15-4 profile system chassis provides an intelligent, practical packaging solution for high-performance processors

VPX Chassis 4U/84HP 8 Slots

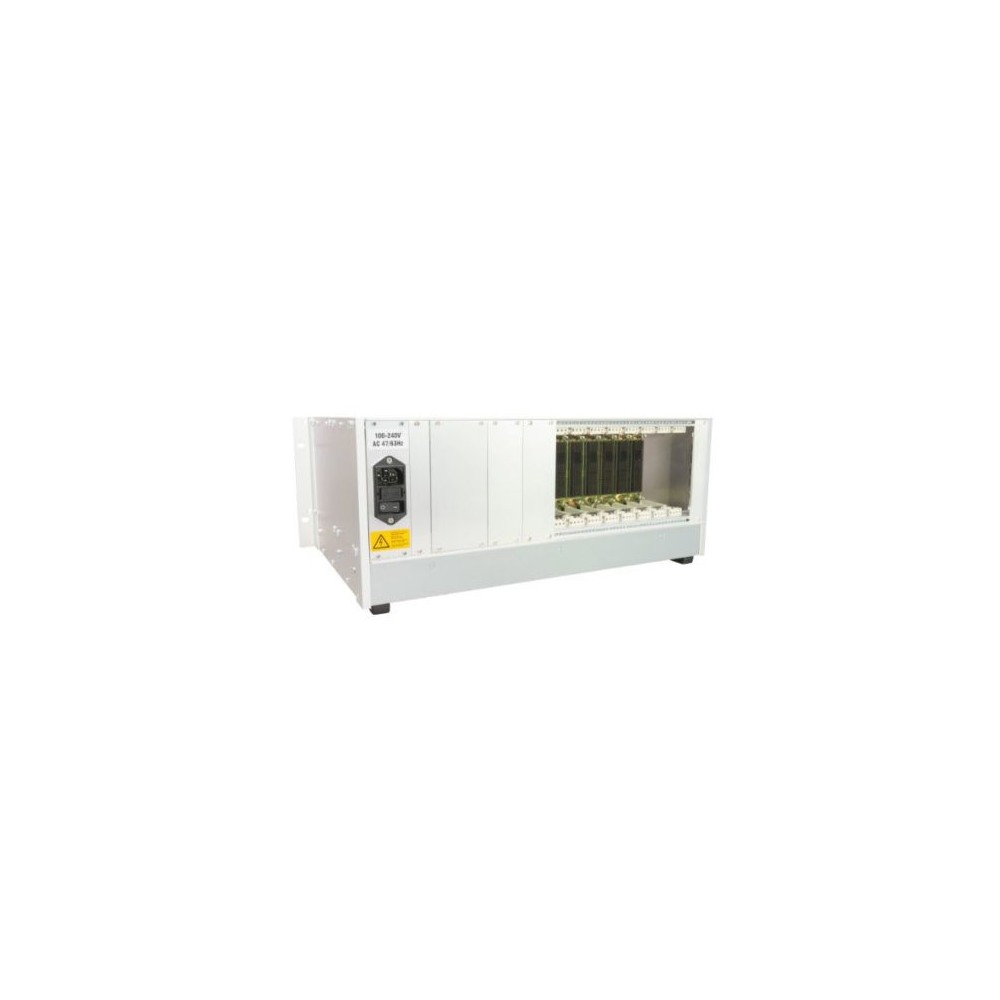

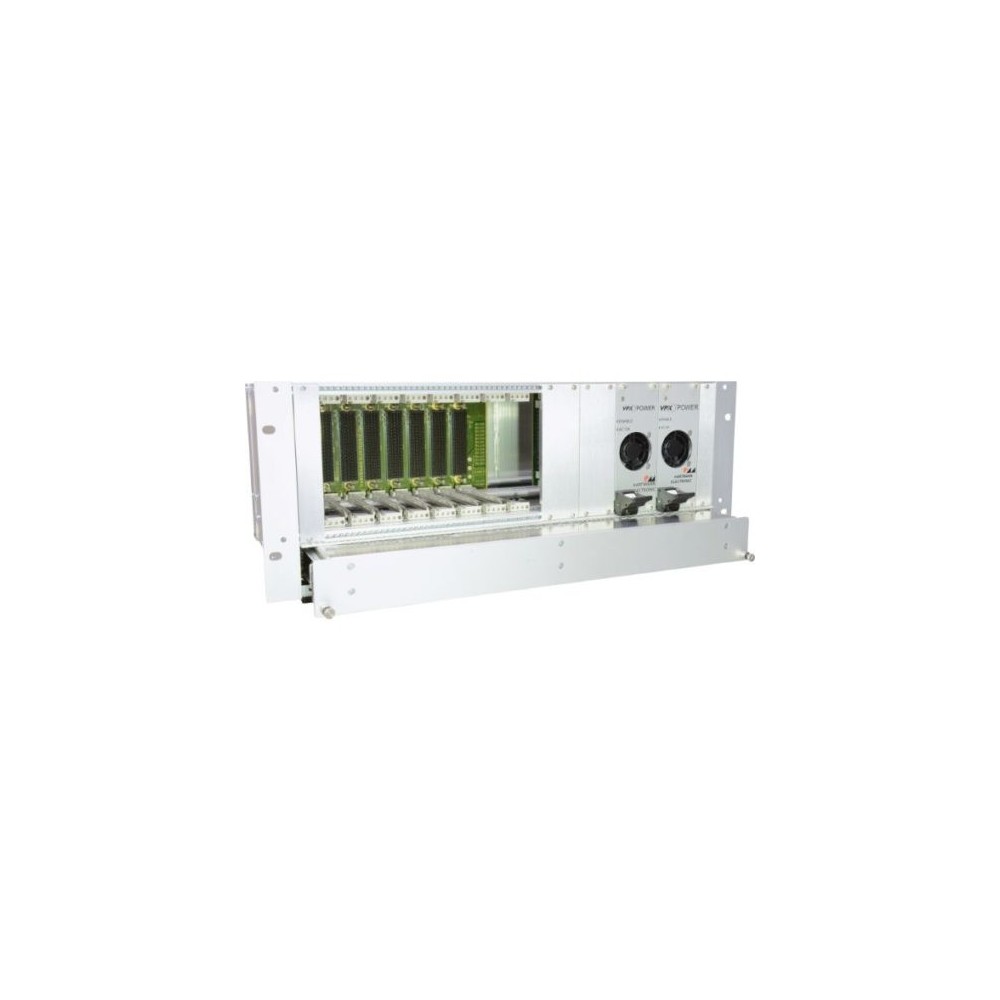

This 8 slot Hartmann Open VPX BKP3-CEN08-15.2.15-4 profile system chassis provides an intelligent, practical packaging solution for high-performance processors. The 84HP wide, rack-mountable enclosure for vertical mounting of boards is outfitted with either a 600W ATX or 600W plug-in VPX power supply and a 1U removable, bottom mount fan tray.

The system is designed with enhanced EMC features. This rugged yet stylish VPX chassis conforms to mechanical standards IEEE 1101.1 and 1101.10.

Main Features

Mounting: 19" Rack-mount
Backplane: 8 slot OpenVPX proﬁle BKP3-CEN08-15.2.15-4 centralized backplane hosting 6 payloads and 2 integrated switches for PCIe Gen3 with rear I/O
Fan Tray: 1U removable
No. of Fans: 3, (12V, 120mm, 120CFM, 48dB/A)
Airflow: bottom to top
Power Supply Type: 2x 600W VPX
Power Input: 90 – 264VAC , 47 – 63Hz
No. of Supplies: 2
Output Voltages: 12V/28A, 3.3V/19A, 5V/25A, ±12VAUX/1A, 3.3VAUX/6A,
Power Supply Connector: Included with switch, fuse and ﬁlter
Chassis Height: 4U
Chassis Width: 84 HP
Chassis Depth: 283.1 mm
IEEE: 1101.1 and 1101.10/11
IEC: 60297-3-101, -102, -103
Military Shipboard: MIL-STD-810F: 514.5C-15 (vibration)
Military Highway: MIL-STD-810F: 514.5 C-1 (vibration), 515.5-10 (shock)
Railway: EN 50155-EN 1373 class 1 B, rolling stock (shock/vibration)
