DuraVision® Maritime Monitors

EIZO's DuraVision maritime monitors are calibrated at the factory to meet international standards for ECDIS and Radar applications, and has Approval from mulltiple Classification Societies.

Read moreShow less
Description

EIZO DuraVision® Maritime Monitors

Steadfast Quality for Maritime

Providing ships and offshore structures with equipment that will continue to operate optimally even in harsh conditions is essential for maritime. DuraVision maritime monitors meet the requirements for 12 major maritime with EU RO MR Type Approval. They also have approvals for LR (UK), DNV GL (Norway / Germany), ABS (USA), and NK (Japan).

Durable and Reliable

DuraVision maritime monitors comply with the conditions for temperature, humidity, and vibration as defined in the IEC 60945 international standard for maritime navigation and radio communication equipment and systems. An IP65 rating ensures the monitors can withstand dust ingress and are protected against low-pressure water jets.

Calibrated for ECDIS

Backlight brightness, gamma, and RGB color settings are calibrated at the factory so each monitor achieves accurate color reproduction for meeting the highly specialized requirements of ECDIS systems. The monitors meet IEC 61174, IEC 62288, and IEC 62388 international standards for ECDIS and RADAR applications.

To find out more, contact us at sales@oriens-group.com

Key Specifications (scroll right for more models):

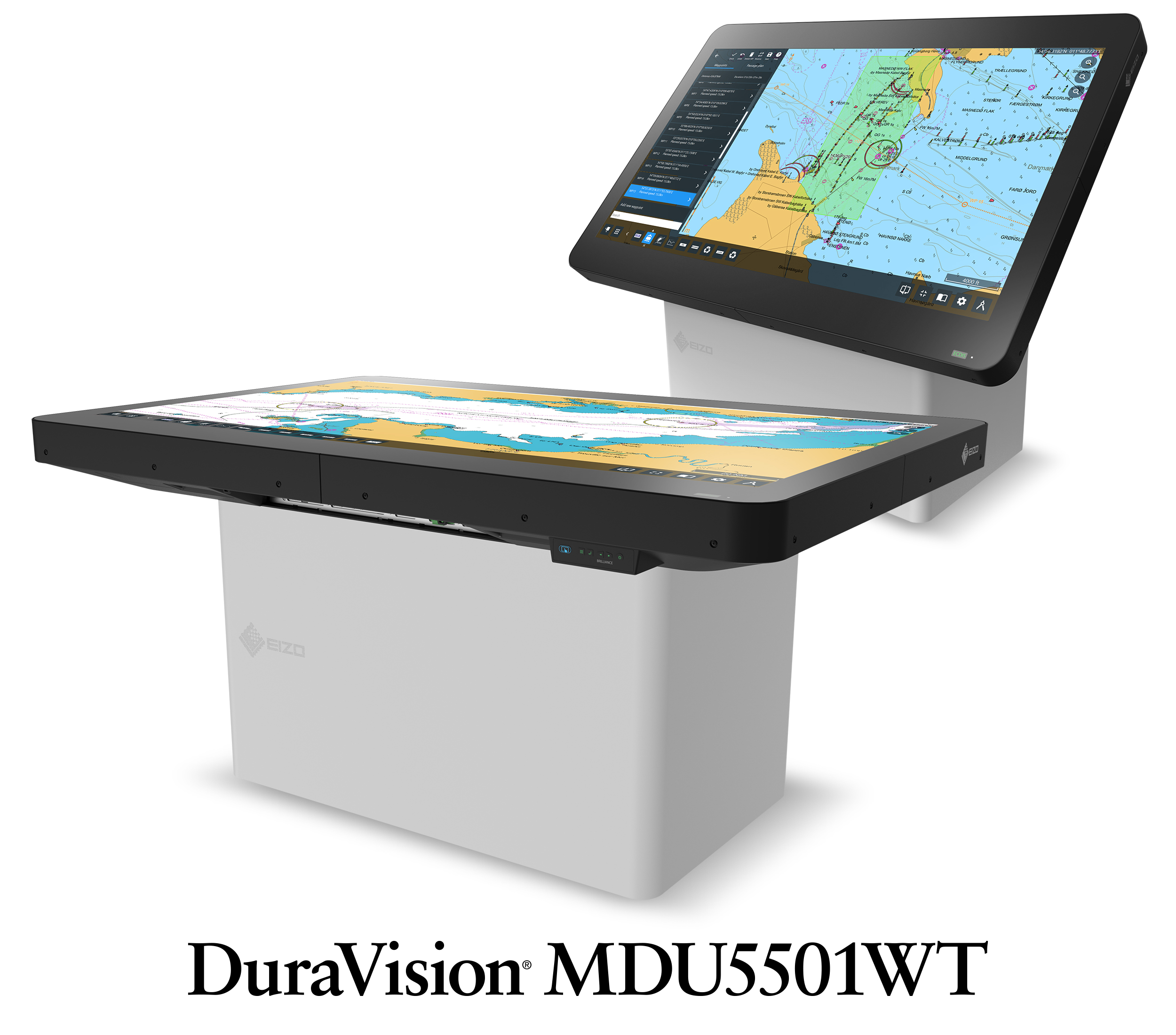

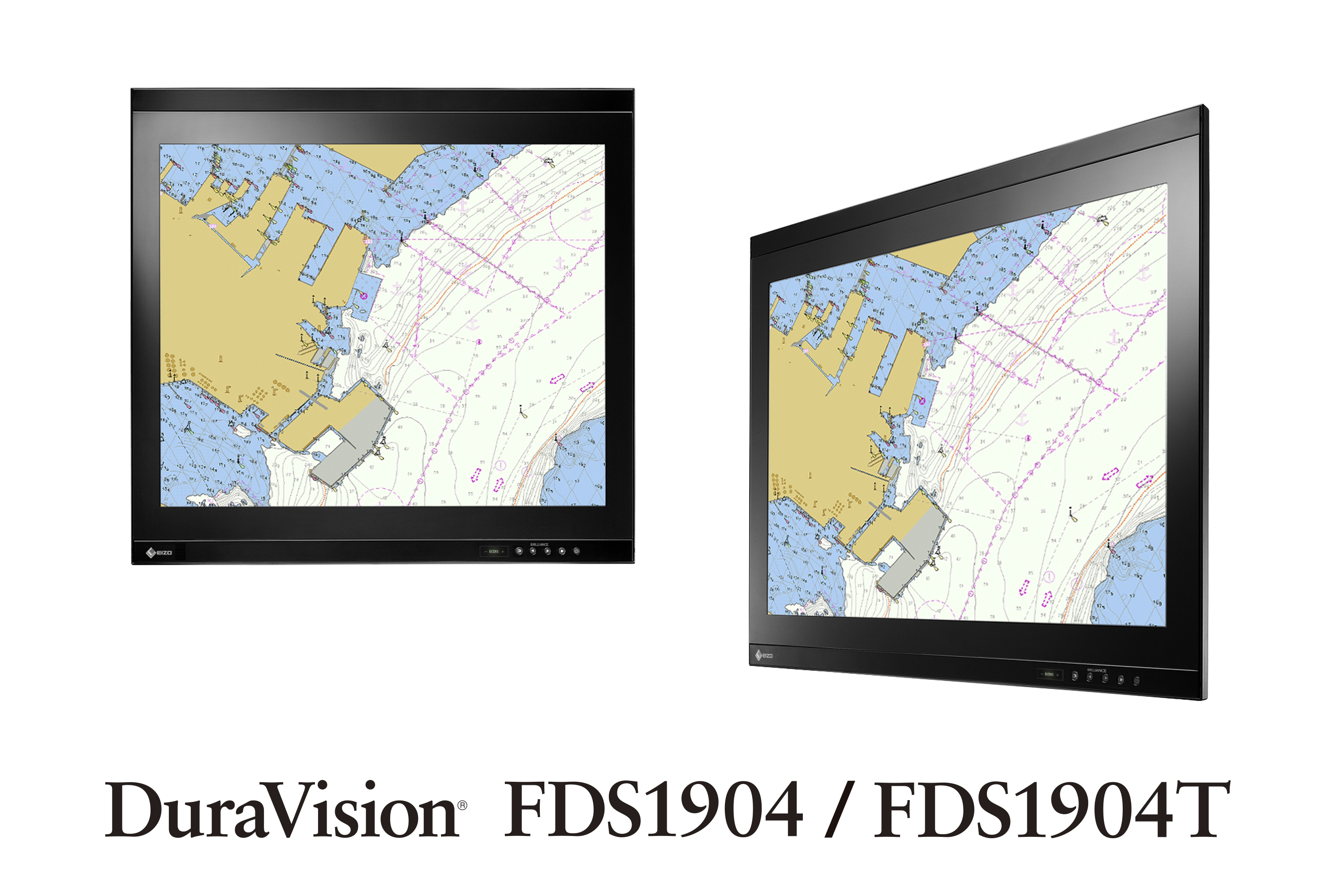

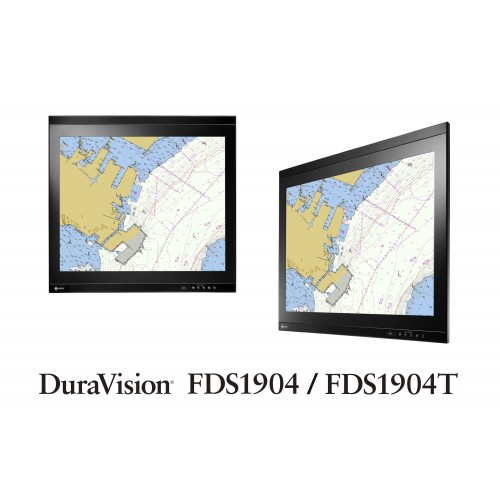

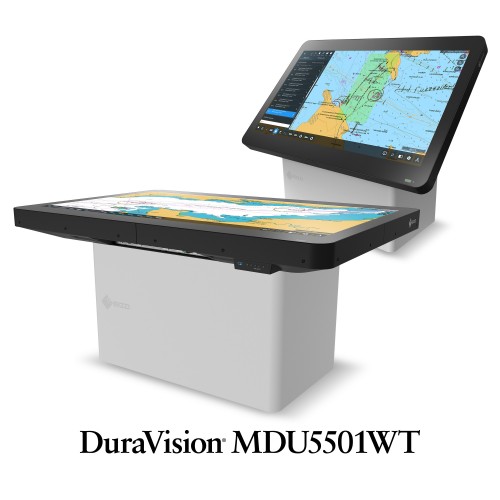

MDU5501WTFDU2603WFDU2603WTFDS1904FDS1904T
Panel Size
Size 54.6" / 138.8 cm 25.5" / 65 cm 19" / 48 cm
Native Resolution 3840 x 2160 (16:9 aspect ratio) 1920 x 1200 (16:10 aspect ratio) 1280 x 1024 (5:4 aspect ratio)
Brightness (typ.) 610 cd/m² 490 cd/m² 470 cd/m² 590 cd/m² 540 cd/m²
Contrast Ration (typ.) 4000:1 1500:1 2000:1
Touch
Type Projected Capacitive - Projected Capacitive

-

Projected Capacitive
Touch Points 10 - 5 - 5
Surface Treatment Anti-Glare coating, Anti-Finger printing - Anti-Reflection coating - Anti-Glare coating, Anti-Finger printing
Surface Hardness 5H - 5H - 5H
Compatible OS Windows 10 / 8.1 (64-bit, 32-bit) - Windows 10 / 8.1 / 7 (64-bit, 32-bit), Windows XP (32-bit) - Windows 10 / 8.1 / 7 (64-bit, 32-bit), Windows XP (32-bit)
Video Signals
Video Input Terminals
  • DisplayPort (HDCP 1.3)
  • HDMI (HDCP 2.2 / 1.4)
  • DVI-D (HDCP 1.4)
  • DVI-D (HDCP 1.4)
  • D-Sub mini 15 pin
  • DVI-D (HDCP 1.4)
  • D-Sub mini 15 pin
USB
USB Upstream USB 2.0: Type-B - USB 2.0: Type-B - USB 2.0: Type-B
USB Downstream USB 2.0: Type-A x 2 - -
Power
Power Requirements
  • AC 100 - 240 V, 50 / 60 Hz
  • DC 24V
  • AC 100 - 240 V, 50 / 60Hz
  • DC 24 V
  • AC 100 - 240 V, 50 / 60Hz
  • DC 24 V
Maximum Power Consumption
  • AC 195 W
  • DC 199 W
  • 108 W
  • 64 W
Power Save Mode
  • 20 W or less (AC input)
  • 15 W or less (DC input)
  • 10 W or less (AC input)
  • 7 W or less (DC input)
  • 9 W or less (AC input)
  • 6 W or less (DC input)
Physical Specs
Dimensions (W x H x D) 1334 x 888 x 121 mm 624 x 456 x 86 mm 429 x 406 x 75 mm
Net Weight 71.7 kg 14.5 kg / 32 lbs 15.1 kg / 33.3 lbs 5.9 kg / 13 lbs 6.4 kg / 14.1 lbs
Safe Distance of Nautical Equipment from Compasses
Standard Compass 2.65 m 1.85 m 0.90 m
Steering Compass 1.70 m 1.20 m 0.60 m
Environmental Requirements
Operating Temperature -15 - 55°C -15 - 55 °C -15 - 55 °C
Operating Humidity (R.H., non condensing) 10 - 90% 10 - 90% 10 - 90%
Degree of Protection
  • IP65 (front)
  • IP22 (rear)
  • IP65 (front)
  • IP22 (Rear)
  • IP65 (front)
  • IP22 (Rear)
Certifications & Standards (Please contact us for the latest information.)
  • Ship Classification: NK (Japan), LR (UK), ABS (US), DNV (Norway / Germany)

  • General: CB, CE, RoHS, WEEE, IEC 60945 (EMC/environmental testing), IEC 61174/IEC 62288/IEC 62388 (items for monitor), EU RO MR
  • Ship Classification: NK (Japan), LR (UK), ABS (US), DNV-GL (Norway / Germany)

  • General: CB, CE, EAC, RoHS, WEEE, China RoHS, IEC60945 (EMC/environmental teating), IEC61174 / IEC62288 / IEC62388 (items for monitor), KC (K60950-1, K00022, K00024), CCC (China model only)
  • Ship Classification: NK (Japan), LR (UK), ABS (US), DNV-GL (Norway / Germany)

  • General: CB, CE, EAC, RoHS, WEEE, China RoHS, IEC60945 (EMC/environmental teating), IEC61174 / IEC62288 / IEC62388 (items for monitor), KC (K60950-1, K00022, K00024)
Warranty 3 years, 24-hour use 3 years, 24-hour use 3 years, 24-hour use

------------------------------------------------------
Screen images provided by NAVTOR and Cambridge Pixel.
------------------------------------------------------
