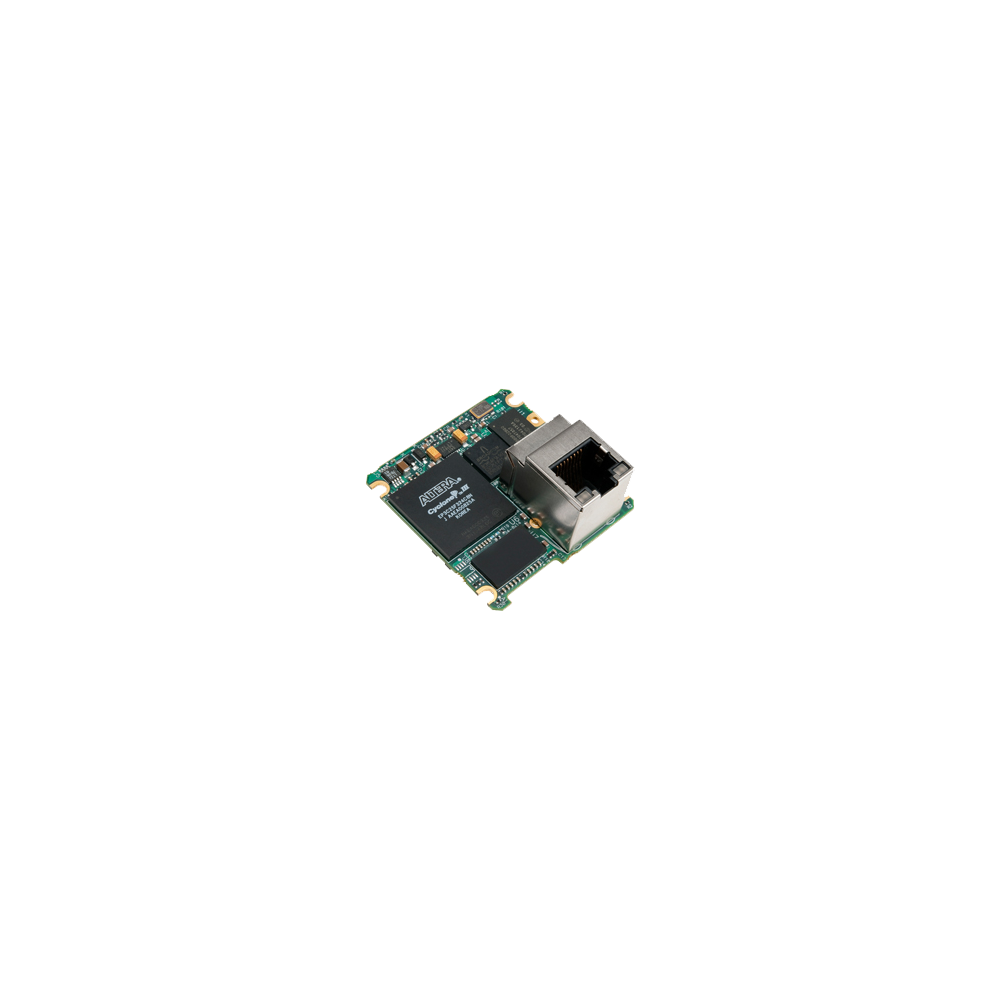

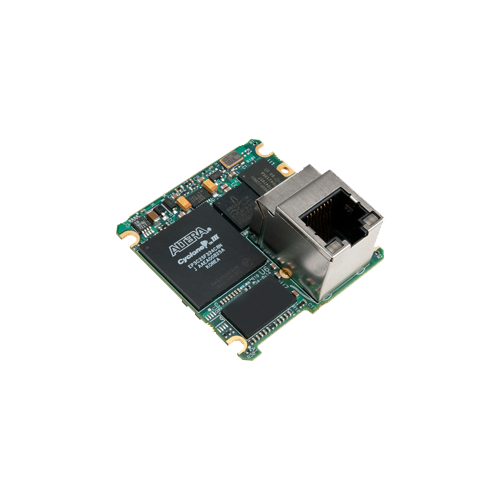

iPORT NTx-Mini Embedded Video Interface

Pleora’s iPORT™ NTx-Mini Embedded Video Interface hardware provides system and camera manufacturers with a straightforward way to integrate Gigabit Ethernet (GigE) video connectivity into their products.

The embedded hardware converts video data to packets at GigE’s full, 1 Gbps throughput rate and sends it with low, consistent latency over a GigE link to receiving software or hardware.

The iPORT NTx-Mini is supported by Pleora’s feature-rich eBUS™ SDK application tool kit. With this software suite, designers can rapidly prototype and deploy production-ready software to support video transmission over GigE, 10 GigE, and USB 3.0 using the same application programming interface (API).

Key Features:

• Compact and low power, easily embedded in small-body cameras, flat panel X-ray detectors, and imaging systems
• Available with a horizontally or vertically mounted RJ45 to the main board
• Throughput up to 1 Gbps
• Up to 24-bit, 90 MHz parallel LVTTL/LVCMOS video input, and 2 interleaved taps
• Line scan and area scan modes
• Programmable logic controller (PLC) allows users to precisely measure, synchronize, trigger, and control the operation of vision system elements such as strobe lights and rotary encoders
• AutoGEV XML generation tool makes it fast and easy to create user-friendly GenICam interface
• Add metadata, such as results of image pre-processing or the exact position of a quadrature
• 32 MB frame buffer for store-and-forward applications
• Updateable firmware via the GigE port for ease of manufacturing and feature upgrades in the field
