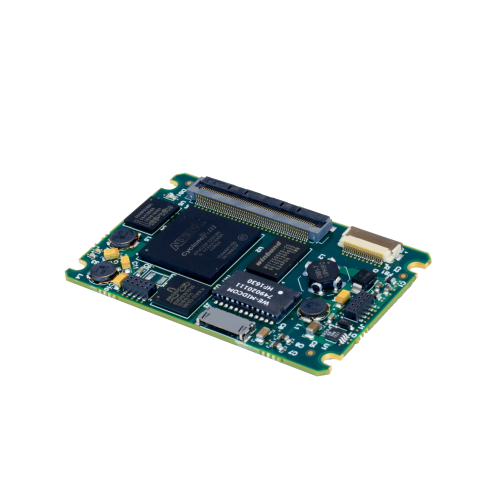

iPORT NTx-Mini-S Embedded Video Interface

Pleora’s iPORT™ NTx-Mini-S Embedded Video Interface hardware is a thin small form-factor solution that provides manufacturers with a straightforward way to integrate Gigabit Ethernet (GigE) video connectivity into their products.

The embedded hardware converts video data to packets over a GigE link and sends it with low, consistent latency to receiving software or hardware.

The iPORT NTx-Mini-S is supported by Pleora’s feature-rich eBUS™ SDK application tool kit. With this software suite, designers can rapidly prototype and deploy production-ready software to support video transmission over GigE, 10 GigE, and USB 3.0 using the same application programming interface (API).

Key Features:

• Compact very low 5mm thickness form factor and low power, easily embedded in specialty cameras, sensor devices requiring a very low thickness form factor, and imaging systems
• Throughput approaching 1 Gb/s
• GigE Vision and GenICam compliant
• Up to 24-bit, 90 MHz parallel LVTTL/LVCMOS video input, and 2 interleaved taps
• Line scan and area scan modes
• 32 MB frame buffer for store-and-forward applications
• Programmable logic controller (PLC) allows users to precisely measure, synchronize, trigger, and control the operation of vision system elements such as strobe lights and rotary encoders
• AutoGEV XML generation tool makes it fast and easy to create user-friendly GenICam interface
• Updateable firmware via the GigE port for ease of manufacturing and feature upgrades in the field
