Condor GR5S-RTX5000

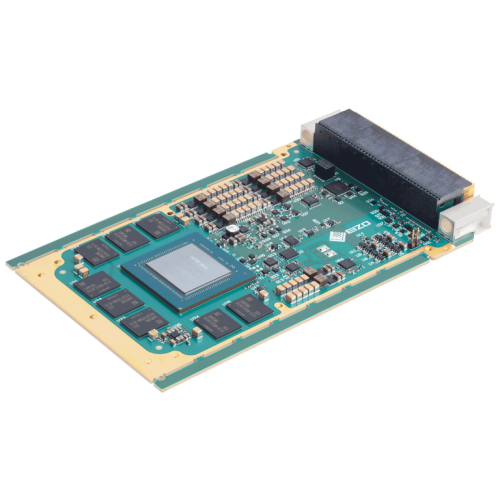

The Condor GR5S-RTX5000 is a rugged 3U VPX form factor card based on NVIDIA® Turing™ architecture and the NVIDIA RTX™ platform. With exceptional performance in GPGPU computing, AI inferencing, deep learning, sensor processing, and data analytics, the card is ideal for ISR (Intelligence, Surveillance & Reconnaissance), EW (Electronic Warfare), DSP (Digital Signal Processing), DVE (Degraded Visual Environments), and Data Science applications.

Applications:

• Military
• Avionics
• Surveillance
• UAV
• Naval
• ISR
• Embedded Systems

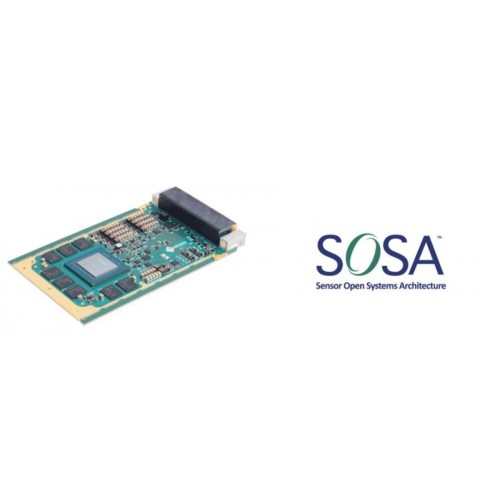

Sensor Open Systems Architecture

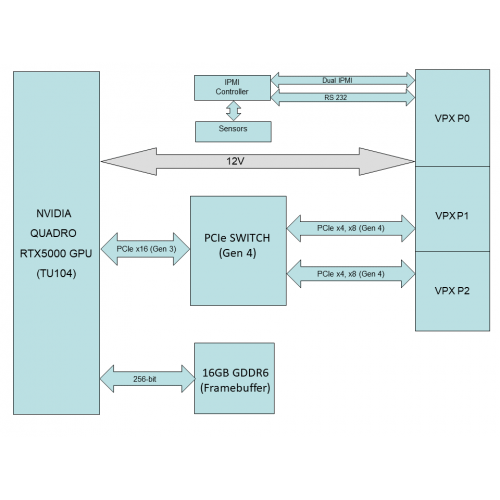

  The Condor GR5S-RTX5000 3U VPX is either a conduction cooled or air cooled 3U VPX card that supports PCI Express 3.0 (16, 8 or 4 lane) interface on the SOSA defined Expansion Plane. The board can consume from 45W to 150W based on factory configuration. Windows and Linux drivers are provided for x86 based platforms. The max power consumption of the board can be factory configured to range from 45W to 110W, depending upon your requirements and cooling profile.

  The Condor GR5S-RTX5000 delivers real-time performance for encoding applications with dedicated H.265 and H.264 encode and decode engines. It is available in both SOSA and VITA standards and has multiple I/O configurations.
