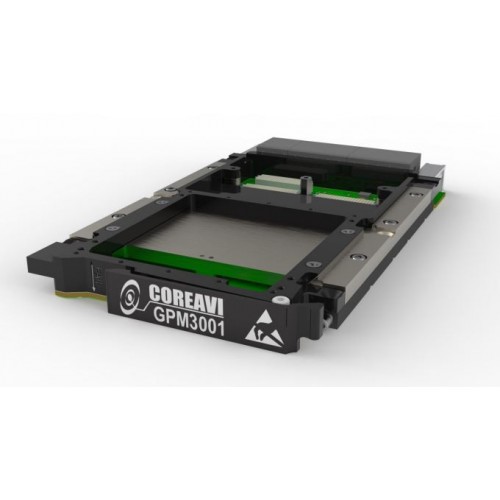

GPM3001 3U VPX E9171 Graphics/Compute Processor

GPM3001 3U VPX E9171 Graphics/Compute Processor

DO-254/ED-80 Certifiable GPU Module IP

INTRODUCTION

The GPM3001 AMD Embedded Radeon™ E9171-based 3U VPX GPU module (GPM) is ideal for avionics and defense applications requiring optimal balance of performance and power efficiency, as well as high-performance GPU processing and messaging with in-slot output formatting and video capture customization through a personality module. The E9171 graphics design comes with all the data needed to support, manufacture, and repair, as well as data to support DO254/ED-80 hardware certification. The GPM3001 is also supported with graphics and video driver libraries complete with data to support DO-178C/ED-12C software certification. The available data kits support both FAA and EASA certification authority needs.

FEATURES AND BENEFITS

• Part of the COTS-D family of safety certifiable modules
• A compact Graphics Processing Unit (GPU) module providing up to five independent display outputs
• • Eight compute units, each containing 64 shaders providing 1,248 GFLOPS FP32 (float) performance/ 78.02 GFLOPS FP64 (double) performance
• Single conduction-cooled rugged module 3U VITA 65 (OpenVPX™) solution
• Option to incorporate either a standard VITA 61 XMC 2.0 site or a Personality Module using the Pn7 connector to reformat outputs and perform low-latency sensor capture
• A complete hardware solution with data package to support certification to RTCA DO-254/EUROCAE ED-80
• The provision of all IP and data to enable manufacture, support, and repair of the module
• Availability of a certifiable OpenGL® graphics libraries for CoreAVI’s VkCore® SC Vulkan®-based graphics and compute driver, with data packages to support DAL A certification to RTCA DO-178C/EUROCAE ED-12C
