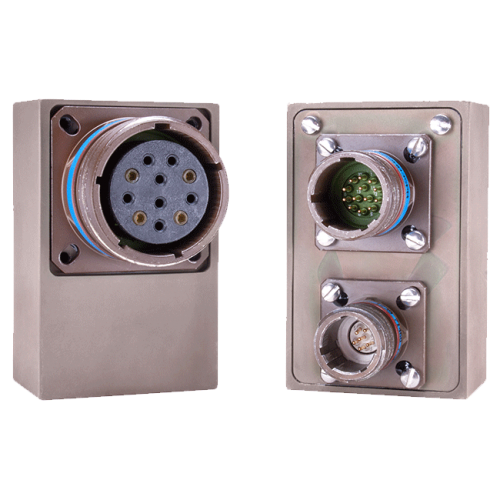

Mercury 28 VDC Ethernet Media Converters

Moog Protokraft Mercury series Ethernet fiber optic media converters consist of optoelectronic single or dual transmitter and receiver functions integrated along with the 10/100Base-TX to 100Base-FX or 1000Base-T electrical to 1000Base-SX optical media conversion circuitry into an externally mounted MIL-DTL-38999 connector assembly.

The optical transmitters are high output 1310 nm LEDs or 850 nm VCSELs.The optical receivers consist of InGaAs or GaAs PIN and preamplifier assemblies and limiting post-amplifiers. The electrical interface to the Mercury series bulkhead optical media converters is a MIL-DTL-38999 connector enabling interconnection to an internal backplane or external backbone cable interface.

Features

• Compliant with IEEE-802.3:2005 Fast or Gigabit Ethernet
• Optical fiber link distances up to 2 km @ Fast Ethernet and 550 m @Gigabit Ethernet
• Operating temperature range from -40°C to +85°C
• Shock, vibration and immersion resistant per MIL-STD-810 and MIL-STD-1344
• Olive drab cadmium plating meets stringent EMI / RFI performance specifications
• Aluminum chassis and D38999 housings are strong, durable, corrosion resistant and lightweight
• MIL-T-29504 compliant optical fiber connector interface
• D38999 electrical interfaces provide robust interconnection to vehicle wiring
• 28 VDC (16-36 VDC) power supply
• Qualified to DO160G and MIL-STD-461F
• Up to four ethernet media converters in one small lightweight but rugged enclosure
• Sealed against liquid and solid contaminants
• Shock and vibration resistant
