Dual-Motor Controller (160A)

Features:

• Two-channel motor controller
• Up to 10S (42V) battery input
• 160A continuous per channel
• Forward and reverse control

The Dual-Motor Speed Controllers operate at 6 to 42 Volts and can handle 160 Amps per channel. They feature adjustable braking, acceleration, and current limiting.

A BEC (Battery Eliminator Circuit) provides a 5V power output for use with radio control receivers or other devices.

Two mixing options are available. Each joystick can operate one channel independently, or a single joystick can operate both channels for tank-like steering.

Over-current and over-heat protections prevent meltdowns and provides the maximum current even under stalled conditions. The maximum current limit is adjustable.

The 160A controller measures 7.5" L x 4.3" W x 2.2" H and weighs 1.4 pounds.

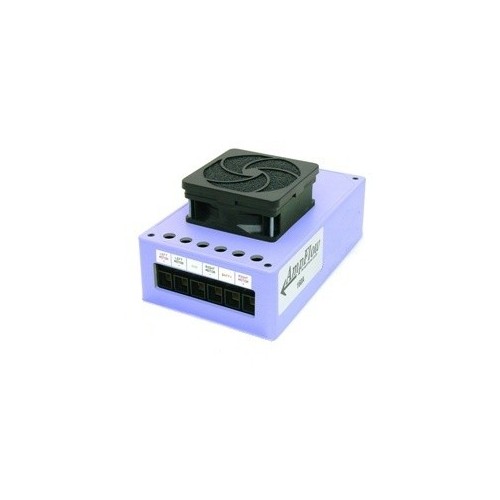

Note: This controller has been updated with a metal case rather than the plastic case shown in the picture.

Additional features:

• Additional third channel for low-current switching of an auxiliary device
• Inputs for two quadrature encoders for full servo control
• Two servo connectors plug directly into an RC receiver
• Adjustable current limiting
• User-selectable servo feedback: Encoder or Analog voltage
• Full RS232 serial command and setup
• Multiple-operating modes: Normal PWM, Torque, Velocity, and Servo-Position
• Manual control inputs for each channel (Left, Right, Aux)
• Robust signal processing for smooth, reliable fail-safe operation
• Indicator LED's show direction, power, over-temperature, and board status
