A23-150 - 2.4-Inch High Performance Motors

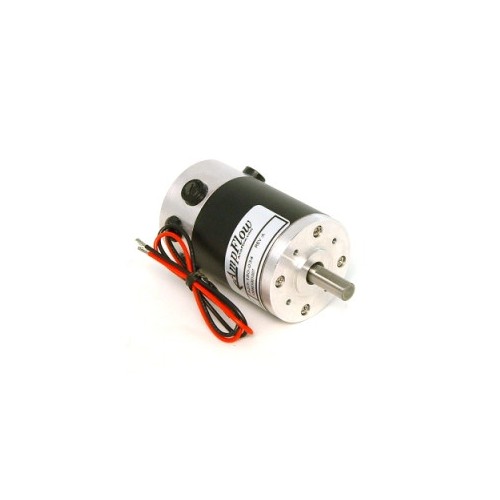

A23-150 Motor

Compact and light-weight, these motors are available in two versions; the Neodymium-magnet, four-brush version for uncompromised performance, and a lower-cost, ferrite-magnet two-brush version designed for high-volume OEM use.

See related products for the lower-cost, ferrite-magnet two-brush version designed for high-volume OEM use.

Specifications:

• Diameter (inches): 2.3
• Length (inches); 3.5
• Peak HP: 0.90
• Stall Torque (oz-in): 570
• Efficiency: 82%
• Voltage: 24V*
• RPM: 6400
• Shaft Dia. (inches): 3/8
• Shaft Length (inches): 1.0
• Magnet Type: Neodymium
• No Load Amps: 1.0
• Resistance (Ohms): 0.21
• Kt (oz-in/Amp): 5.03
• Kv (RPM/Volt): 269
• Weight (pounds): 2.1

* The above specifications are for 24V. The motors can also be used at 12V or 18V. The RPM is proportional to the voltage so running at 12V will result in half the no-load RPM that is shown above for 24V. The lower voltage also reduces the maximum achievable torque by 50%. The motors have also been tested and used at higher voltages resulting in higher RPM, torque, and power. Shorter duty-cycles are recommended for higher voltages to allow the motors time to cool. Please note that the above torque figures are the theoretical peak torques when stalled. Operating any high-performance motor while stalled will damage it.

Efficiency

Getting high efficiency from a low-voltage motor is not easy. There are many factors that effect efficiency. We have optimized each of these factors to achieve very high efficiency in these motors.

• Type: High-Performance
• Voltage: 24V
• Peak Efficiency (PE): 82%
• RPM at PE: 5900
• Torque at PE (oz-in): 45
• Horsepower at PE: 0.26 HP
• Current at PE: 10 Amps

The RPM is the same in both directions to within about 5%.
