F24-150 - Small, Economy High Performance Motors

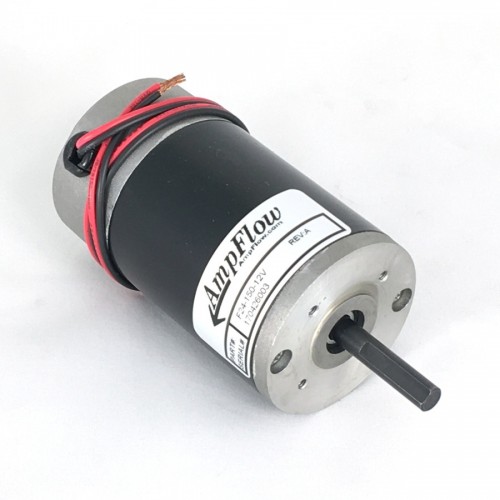

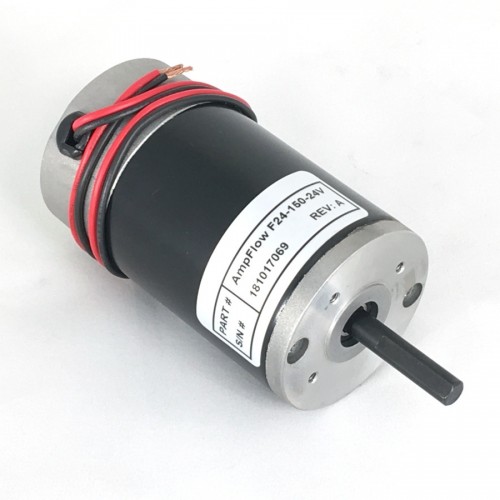

F24-150-12V/24V Motor

Compact and light-weight, these motors are available in two versions; the Neodymium-magnet, four-brush version for uncompromised performance, and a lower-cost, ferrite-magnet two-brush version designed for high-volume OEM use.

See related products for the Neodymium-magnet, four-brush version for uncompromised performance.

Specifications (24V/12V):

• Diameter (inches): 2.4
• Length (inches): 4.1
• Peak HP: .31 (24V) / .29 (12V)
• Stall Torque (oz-in): 250 (24V) / 206 (12V)
• Efficiency: 70% (24V) / 67% (12V)
• Voltage: 24V / 12V
• RPM: 4900 (24V) / 5600 (12V)
• Shaft Dia. (inches): 5/16
• Shaft Length (inches): 1.4
• Magnet Type: Ferrite
• No Load Amps: 1.1 (24V) / 2.5 (12V)
• Resistance (Ohms): 0.58 (24V) / 0.16 (12V)
• Kt (oz-in/Amp): 6.45 (24V) / 2.80 (12V)
• Kv (RPM/Volt): 210 (24V) / 482 (12V)
• Weight (pounds): 2.0

Getting high efficiency from a low-voltage motor is not easy. There are many factors that effect efficiency. We have optimized each of these factors to achieve very high efficiency in these motors.

• Type: Economy
• Voltage: 24V / 12 V
• Peak Efficiency (PE): 70% (24V) / 67% (12V)
• RPM at PE: 4200 (24V) / 4700 (12V)
• Torque at PE (oz-in): 36 (24V) / 33 (12V)
• Horsepower at PE: 0.16 HP (24V) / 0.15 (12V)
• Current at PE: 7 Amps (24V) / 14 Amps (12V)

The RPM is the same in both directions to within about 5%.
