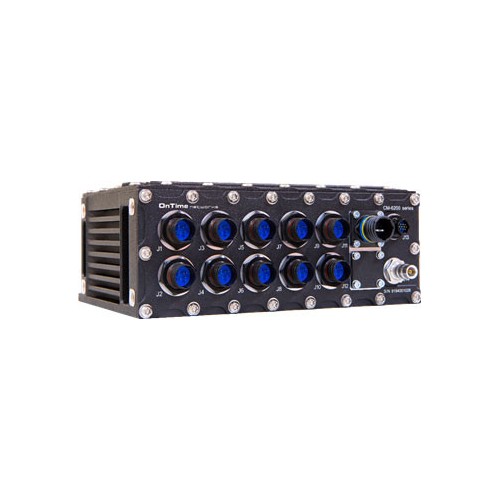

CloudberryMIL CR-6200-MIL SERIES

The new Cloudberry CR-6200 Series is a commercial-off-the-shelf (COTS), fully managed Layer 2/3 Ethernet switch with an embedded Cisco 5921 Embedded Services Router (ESR) IOS and network time server capability (IEEE 1588 PTP, NTP, IRIG, 1PPS), in an ultra-rugged housing. It is specifically designed to provide reliable, high-performance connectivity for extremely demanding size, weight, and power (SWaP) constraints in harsh demanding environments (e.g. high altitude, extreme shock & vibration, extended temperatures, humidity, dust & water exposure, noisy EMI, dirty power).

The CR-6200 is an ideal solution for forward-fit and retrofit applications. It provides a technology advantage for deploying data, video, and voice services virtually anywhere LAN/WAN connectivity may be required, especially in mobile, airborne, ground, manned, or unmanned vehicle and sensor applications. With routing speeds of up to 200 mbps for the Cisco 5921 ESR package or full wire speeds for OnTime Networks' own router package, the unit offers a powerful network solution. With up to 24 gigabit Ethernet and four 10 gigabit Ethernet ports, the CR-6200 provides a robust network routing architecture with the performance, security, quality of service (QoS), high availability, and manageability that customers expect from Cisco IOS-based technologies.

The familiar Cisco IOS router software and the Cisco-like CLI interface on the switch management side minimize training requirements and provide extensive support for IPv4/IPv6 routing protocols, IP multicasting, Radio Aware Routing (RAR), Dynamic Link Exchange Protocol (DLEP), remote VoIP, Firewall/IPS/IDS, Mobile Ad Hoc Networking (MANET) and Mobile IP routing for connectivity in Comms on the Move (COTM) applications. Additional information about the Cisco 5921 Embedded Services Router (ESR) IOS can be found here:http://www.cisco.com/c/en/us/products/collateral/routers/5921-embedded-services-router/data_sheet_c78-729702.html

Its modular rugged design, enclosed in a completely sealed housing against dust and water ingress (IP68), requires no active cooling and provides a number of connector options (ceelok FAS-T, MIL-DTL-38999, MightyMouse). The unit features a military-grade power supply for aircraft (MIL-STD-704F) and ground (MIL-STD-1275D) vehicle use, as well as MIL-STD-461F EMI/EMC filtering. Its performance is optimized for a large number of IP-enabled embedded devices, such as computers, cameras, sensors, and command-and-control equipment, deployed in manned and unmanned system platforms at the network edge.

The RCR-6200 supports the latest generation of IPv6 switching, allowing it to meet the most challenging requirements for next-generation DoD networks. IPv6 provides improved network security and reliability, while support for more network addresses allows for a greater number of interconnected devices. Additional management and configuration features include quality of service (QoS) prioritization, VLANs, LAG, SNMP, RSTP, VRRP, IGMP, and traffic policing, providing customers the flexibility to meet their unique networking requirements.

The CRM6200-MIL is a reliable and accurate PTP Grand Master Clock (GMC) or Transparent Clock/Slave Clock (TC/SC) fulfilling IEEE 1588 STD 2002 (v1) and IEEE 1588 STD 2008 (v2). Both PTPv1 and PTPv2 Slave clocks can co-exist in the same network by using the PTP version translator feature of the CM6200-MIL platform. The switch can also act as an NTP Network Time Server (NTS) and provide GPS emulation output both when enabled as a GMC and when operating as a TC/SC. GPS emulation means Pulse Per Second (PPS) output signals via GPO pins in the power connector (TTL) and NMEA telegrams via RS232 in the same connector. An IRIG-B002 output (TTL) signal can be provided via GPO pins in the power connector.

THIS FULLY MANAGED, LAYER 2/3 GIGABIT SWITCH PROVIDES A POWERFUL SET OF NETWORKING FEATURES INCLUDING:

• Support for IPv4 multicast traffic filtering according to static filters or IGMP snooping
• Virtual Local Area Networks (VLANs)
• Port control (speed/mode/statistics, flow control)
• Quality of Service (QoS) traffic prioritization
• Link Aggregation (802.3ad)
• SNMP v1/v2/v3 management
• Secure authentication (802.1X, ACLs, Web/CLI)
• Redundancy (RSTP/MSTP)
• Port mirroring

28VDC redundant power input with polarity protection and power hold-up (option) support is available through the 10 pin power/IO connector. The CR-6200 utilizes for single port connector requirements the Ceelok FAS-T connector for 10/100/1000BASE-T(x) and 10GBASE-T(x) copper ports and the ARINC801 optical termini in circular MIL-DTL-38999 connectors for 1000BASE-X/10GBASE-X fiber ports. For the 28 port variant the 10/100/1000BASE-T(x) ports are provided via D38999 connectors.
