CloudberryMIL CM-4000-MM SERIES

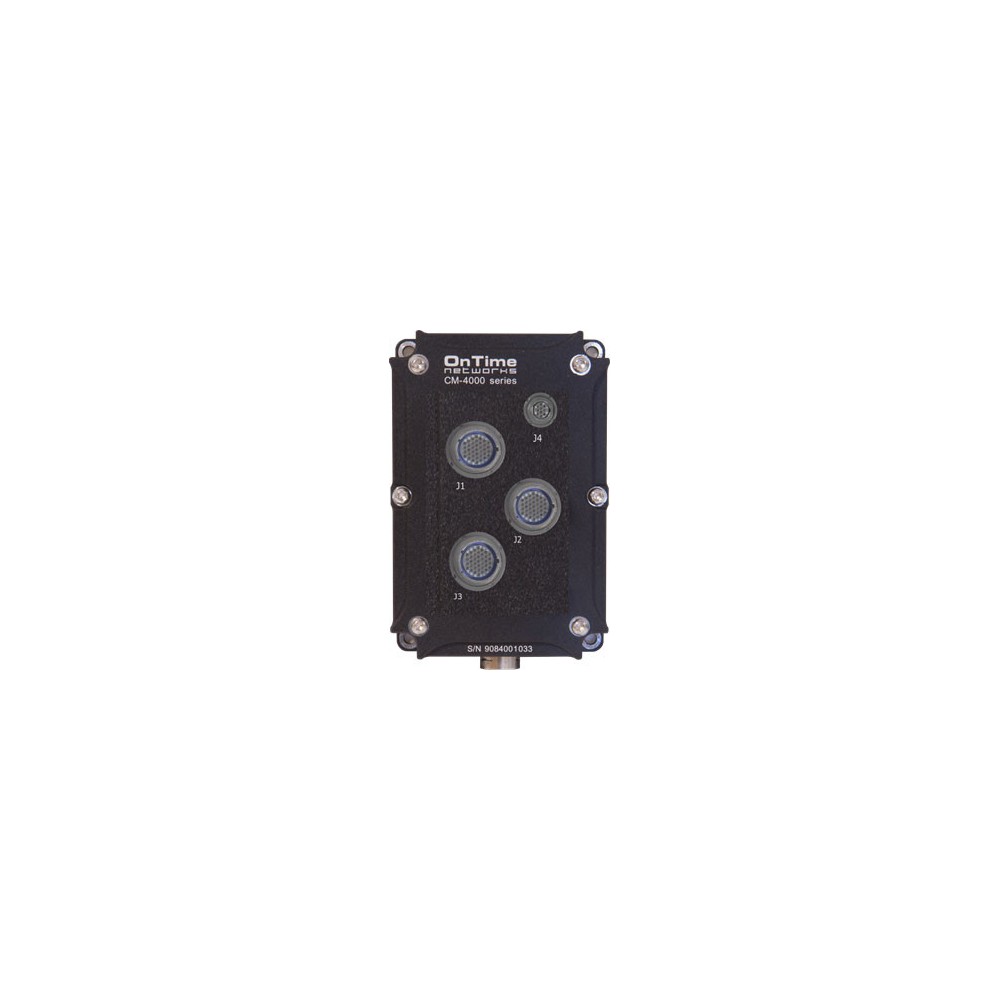

The new Cloudberry CM-4012F0-MM-MIL is a small form factor rugged Commercial Off the Shelf (COTS) 12-port Gigabit Ethernet (GbE) switch specifically designed to reliably provide high-performance connectivity for extremely demanding size, weight, and power (SWaP) constraints in the harsh climatically and noisy electrical demanding environments (e.g. high altitude, extreme shock, & vibration, extended temperatures, humidity, dust & water exposure, noisy EMI, dirty power) on land, in the air, and on sea.

These include land vehicles, aircraft, UAVs, and naval vessels.

The CM-4012F0-MM-MIL is an advanced and highly engineered GbE switch that addresses complexity, enables modularity and provides growth, while delivering optimal performance for SWaP constrained military applications onboard vehicles and aircraft platforms.

The very small design with less than 2 pounds in weight, a 10 Watts typical power consumption, and small MIL circular connectors, makes the unit well suited for low size/weight applications where electromagnetic compatibility (EMC) is important.

The unit is designed to meet the environmental requirements of RTCA/DO-160 and MIL-STD 810G as well as the EMI/EMC requirements (Conducted & Radiated Emissions & Susceptibility) of MIL-STD 461F, MIL-STD-704F and 1275E.

The extended temperature operation from -40 to +71C, resistance to high shock/vibration, humidity, altitude, and dust/water ingress makes the CM-4012F0-MM-MIL an extremely reliable Local Area Network (LAN) switch solution for retro and forward-fit installations.

This fully managed, Layer 2 Gigabit switch provides a powerful set of networking features, including support for IPv4 and IPv6 multicast traffic filtering according to static filters or IGMP snooping, Virtual Local Area Networks (VLANs), port control (speed/mode/statistics, flow control), Quality of Service (QoS) traffic prioritization, Link Aggregation (802.3ad), SNMPv/1/v2/v3 management, secure authentication (802.1X, ACLs, Web/CLI), redundancy (RSTP/MSTP) and port mirroring.

The switch also supports Transparent Clock operation according to IEEE 1588 Std 2008 (PTPv2).

Further, the unit also supports Layer 3 IPv4 / IPv6 static routing for attached WAN/radios, Built-in Test (BIT), and data zeroization.
