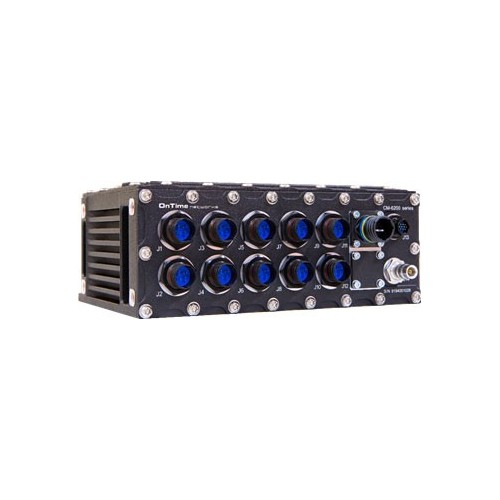

CloudberryMIL CM-6200-MIL SERIES

The CM-6200-MIL Series Rugged (VICTORY ready) Gigabit/10Gigabit Ethernet Switch with IEEE 1588 PTP GMC capability is a Fully Managed Layer 2/3 Ethernet Switch with up to 24 Gigabit Ethernet and four 10Gigabit Ethernet ports, specifically designed to reliably provide high-performance connectivity for extremely demanding size, weight, and power (SWaP) constraints in the harsh climatically and noisy electrical demanding environments (e.g. high altitude, extreme shock, & vibration, extended temperatures, humidity, dust & water exposure, noisy EMI, dirty power) for applications on land, in the air and on sea.

The CM-6200 with its sealed IP68 aluminum chassis has been designed to meet MIL-STD-461F EMI/EMC and MIL-STD-810G thermal, shock, vibe, humidity, altitude, and ingress conditions. The unit features no moving parts, EMI filtering, and isolated MIL-STD-1275/704 power supply that protects against vehicle/aircraft voltage surges, spikes and transients.

Its performance is optimized for a large numbers of IP-enabled embedded devices, such as computers, cameras, sensors, and command-and-control equipment, deployed in manned and unmanned system platforms at the network edge.

The CM-6200 supports the latest generation of IPv6 switching, allowing it to meet the most challenging requirements for next generation DoD networks. IPv6 provides improved network security and reliability, while support for more network addresses allows for a greater number of interconnected devices. Additional management and configuration features include quality of service (QoS) prioritization, VLANs, LAG, SNMP, RSTP, VRRP, IGMP and traffic policing, providing customers the flexibility to meet their unique networking requirements.

The CM6200-MIL is a reliable and accurate PTP Grand Master Clock (GMC) or Transparent Clock/Slave Clock (TC/SC) fulfilling IEEE 1588 STD 2002 (v1) and IEEE 1588 STD 2008 (v2). Both PTPv1 and PTPv2 Slave clocks can co-exist in the same network by using the PTP version translator feature of the CM6200-MIL platform. The switch can also act as a NTP Network Time Server (NTS) and provide GPS emulation output both when enabled as a GMC and when operating as a TC/SC. GPS emulation means Pulse Per Second (PPS) output signals via GPO pins in the power connector (TTL) and NMEA telegrams via RS232 in the same connector. An IRIG-B002 output (TTL) signal can be provided via GPO pins in the power connector.

The CM6200-MIL is an advanced and highly engineered Gigabit switch that addresses complexity, enable modularity and provides growth, while delivering optimal performance for Space, Weight, Power and Cost (SWaP-C) constrained military applications onboard vehicles and aircraft platforms. The unit designed to meet the environmental requirements of MIL-STD 810G and the EMI/EMC requirements (Conducted & Radiated Emissions & Susceptibility) of MIL-STD 461F and 704E.

This fully managed, Layer 2/3 Gigabit switch provides a powerful set of networking features, including support for IPv4 multicast traffic filtering according to static filters or IGMP snooping, Virtual Local Area Networks (VLANs), port control (speed / mode / statistics, flow control), Quality of Service (QoS) traffic prioritization, Link Aggregation (802.3ad), SNMP v1/v2/v3 management, secure authentication (802.1X, ACLs, Web/CLI), redundancy (RSTP/MSTP) and port mirroring.

28VDC redundant power input with polarity protection and power hold-up (option) support is available through the 10 pin power/IO connector. The CM-6200 utilizes for single port connector requirements the Ceelok FAS-T connector for 10/100/1000BASE-T(x) and 10GBASE-T(x) copper ports and the ARINC801 optical termini in circular MIL-DTL-38999 connectors for 1000BASE-X/10GBASE-X fiber ports. For the 28 port variant the 10/100/1000BASE-T(x) ports are provided via D38999 connectors.
