Brand:

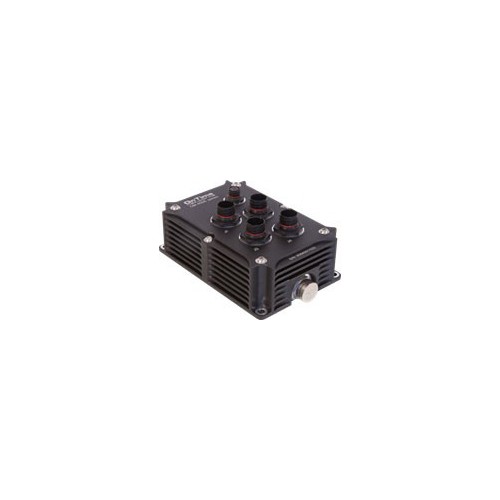

CloudberryAERO CM-4004F0-ITAP SERIES
Managed airborne rugged 4 Port Gigabit Ethernet Inline Tap with 4 x 10/100/1000BASE-TX (Ceelok FAS-T)
The CM-4004F0-ITAP-AERO platform is a ruggedized non-intrusive four ports gigabit managed Ethernet tap designed for installation onboard an aircraft or a military vehicle. The tap mirrors uplink and downlink data to one or two mirror ports. The tap is designed for failure safe operation, where near continuous network data flow is provided regardless of power loss, power failure or any other malfunctions occurring on the device.
The CM-4004F0-ITAP-AERO series offer full management based on HTTP, telnet, CLI or SNMP. The tap is designed for aircraft environments with a wide operating temperature range.
Ruggedized military approved connectors are used for both the Ethernet ports and the power connector.
The CM-4004F0-AERO series is configured with five connectors: power input (J5) and 4 x 10/100/1000BASE-TX Ethernet ports (J1-J4). The following sections provide the mating connector and cable pin-outs for each of the connectors, which are located on the top of the unit.
