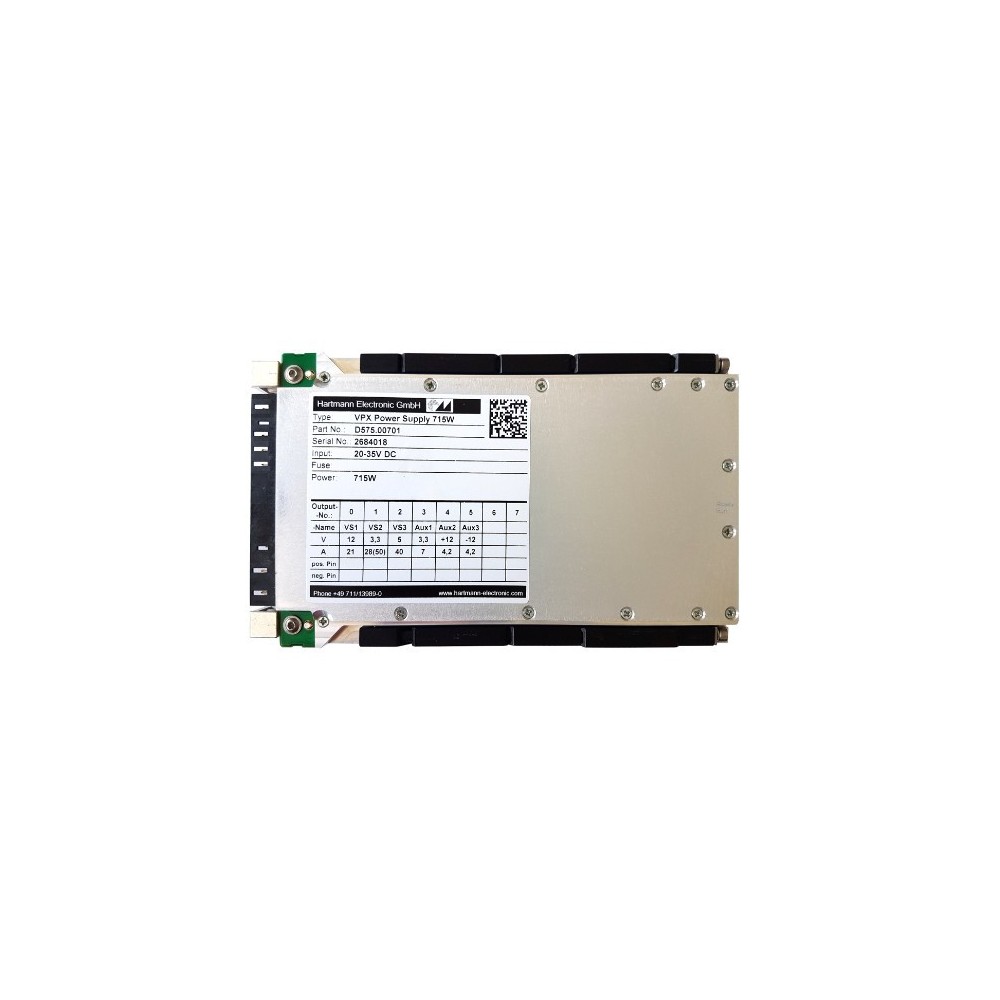

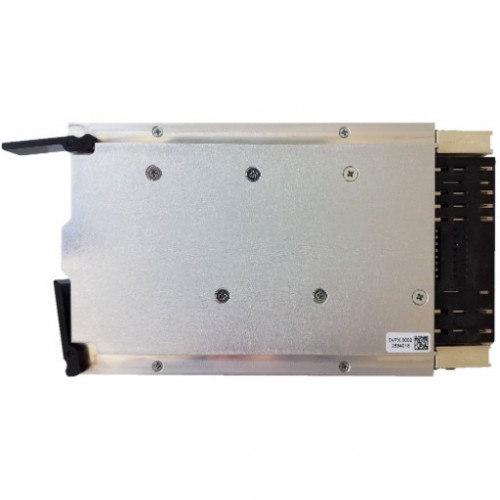

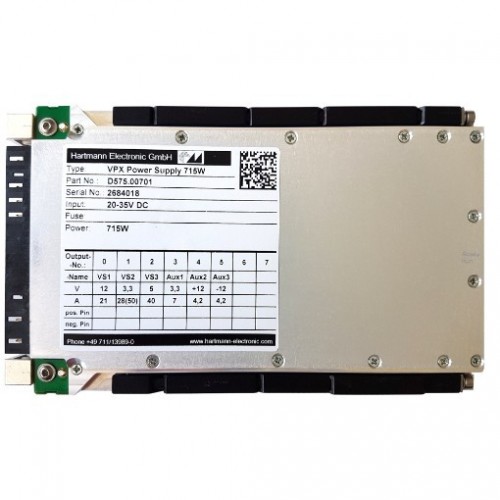

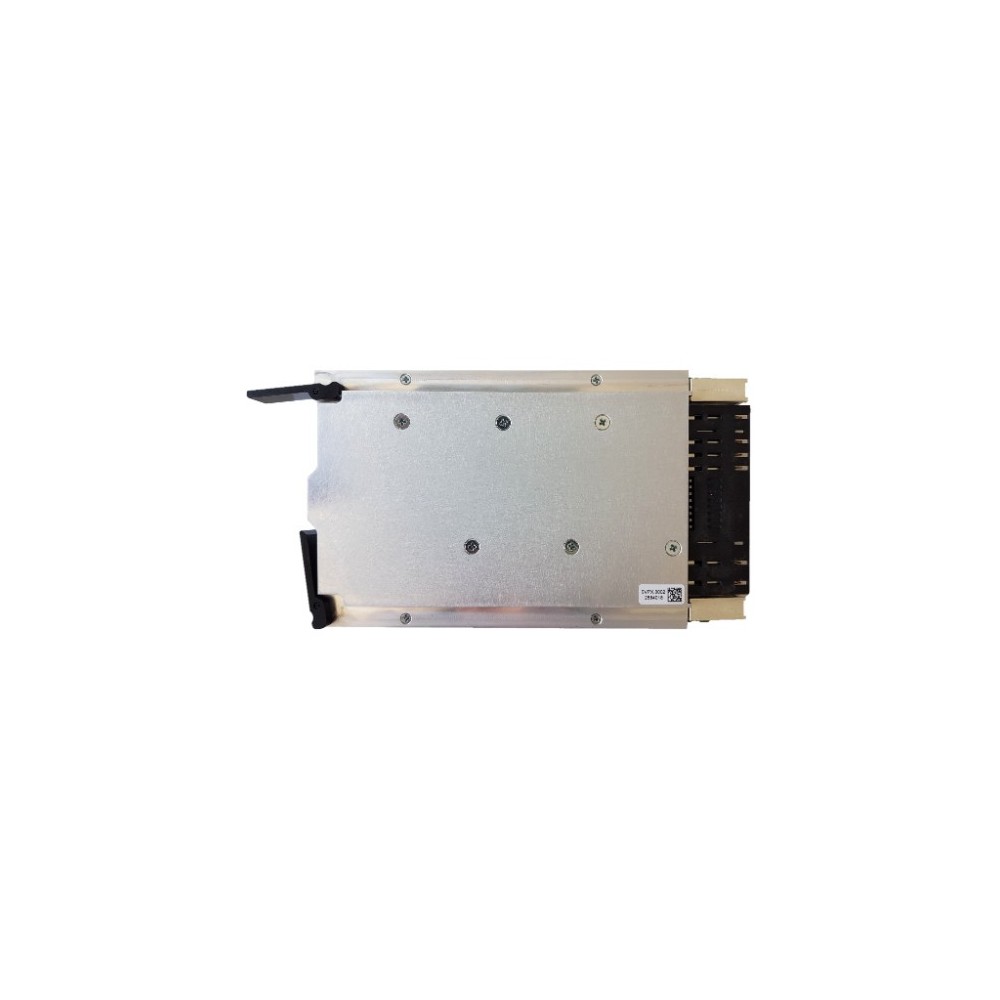

VPX 3U DC VITA62 Power Supply 715W

Hartmann’s VPX Power Supplies are built for the most rugged applications with quality and reliability in mind. The D575.0701 VITA 62 compliant 3U DC-DC supply boasts up to 715W output power while reaching up to 88% efficiency. Talk to a Hartmann representative today about compliance and your power needs.

Read moreShow less
Description

VPX 3U DC VITA62 Power Supply 715W

Using state of the art switching power technology a wide input range voltage range as well as high overall efficiency is achieved. The 715W

Power Supply part number D575.00701 offers highest output power on all 6 DC output channels which makes it a perfect power supply for

test and development applications.

The VPX power supply mechanical dimensions are 3U x 4HP (0.80” slot). It is outfitted with connectors, keying and alignment mechanism as per VITA 62

Main Features

  • Compliant to VITA 62 baseline specification
  • Up to 715 W maximum / 600W continuous power,
  • 3U size, 0.8" pitch
  • 6 (5 independent) output voltages VS1 (12V), VS2 (3.3V), VS3 (5V), Vaux1(+12V), Vaux2(-12V), Vaux3 (3.3V)
  • up to 88% peak efficiency
  • 28V DC input voltage (19V ... 35V)

Power Supply Features

  • Compliant to VITA 62 baseline specification (mechanical specification, connector and keying, power rails)
  • Up to 715 W maximum / 600W continuous power
  • Parallel mode with Hartmann Electronic Power-Backplanes possible
  • Up to 88% peak efficiency
  • 6 (5 independent) output voltages
  • 28V DC input voltage (19V ... 35V)
  • Voltage sense controlled, Over Voltage, Over Current, Over Temperature protection
  • Ruggedized to MIL-STD-810
  • Operating Temperature -40°C to 85°C
  • Dimensions: 100.0 mm x 170.0 mm x 20.3 mm (3.9” x 6.69” x 0.8”)
  • Weight: 0.6kg (1.23 lbs)
Read moreShow less
Specifications
D575.00701
