ComEth4420e
Brand:
Interface Concept

ComEth4420e

ComEth4412a
BJ76/77 3 Lug Bayonet Miniature

3U VPX Dual-Plane Gen3/4 PCIe & 40 Gigabit Ethernet Switch

Read moreShow less
Request for Quote
Add to wishlist
Share
Description

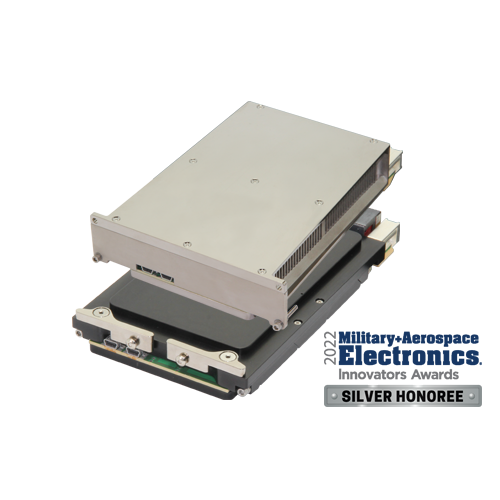

The SOSA™-aligned ComEth4420e is a 3U VPX hybrid PCIe Gen3/4 and 40 Gigabit Ethernet Switch based on two separate planes. This switch, developed by Interface Concept, provides up to 11*10/40 GbE ports and up to 12 PCIe Gen3/4 ports. The Air Flow Through (AFT) cooling, supported on our switch, enables significantly increased cooling capabilities while handling high density processing and I/O solutions. Air and conduction-cooled versions are also available.

  • 3U VPX
  • Managed Layer 2+/3 switch
  • VITA 65.0 SLT3-SWH-6F8U-14.4.15/6F6U-14.4.1
  • Up to 14 Eth. ports and up to 12 PCIe ports
  • 1000BASE-KX/10GBASE-KR, 1000BASE-T (rear)
  • 10GBASE-T/1 * QSFP+ (front)
  • Aligned with SOSA Technical Standard
Read moreShow less
