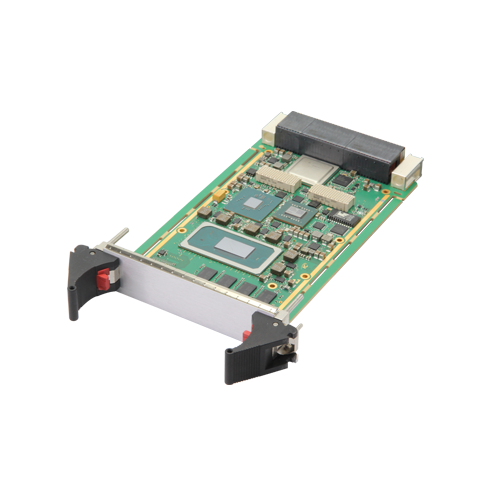

The IC-INT-VPX3L is a 3U VPX Single Board Computer based on the Intel® Xeon® W (code name Tiger Lake-H) processor and designed in alignment with the SOSA™ Technical Standard. This high-processing module is ideally suited for mil-aero applications and edge applications such as Mission Computer, Radar and Sonar HPEC.
1. Processing Unit
1 * Intel Xenon (Tiger Lake-H)
- W-11555MRE (6 Cores, 2.60GHz) or
- W-11865MRE (8 Cores, 2.60GHz)
- 2 * banks of DDR4 with ECC (up to 8/16 GB/bank)
- Boot flash memory
1 * XMC Slot
1 * M.2242 slot for SATA SSD
1 * FPGA
1 * Board Management Controller
Thermal/Voltage monitoring services
2. Front Connectors
mini-USB console port
3. P1 Connector
1 * 100G Ethernet port or 4 * 10GBASE-KR Ports
1 * PCIe x4 or 4 * SATA Ports
1 * 10GBASE-KR Ethernet port
1 * 10GBASE-KR Ethernet port or 1* 1000BASE-KX Ethernet port (*)
1 * Maintenance serial port
1 * GPIO
XMC IOs report (x12d)
4. P2 Connector
1 * Video Display Port
1 * USB 3.0 Port
2 * USB 2.0 Port
1 * SATA Port
1 * 1000 BASE-T Ethernet port or 2 10GBASE-KR Ethernet ports
1 or 2 * Serial ports (232/422)
3 * GPIOs
XMC IOs report (X16s + X8d)
(*) Factory Configuration
5. Miscellaneous
Status LEDs
6. Accessories
3U Rear Transition Module
(The IC-INT-VPX3L is a 3U VPX board compliant with VITA 46.0 Standard.)
