Magni - Rugged 3U VPX SOSA Aligned Compute Intensive Plug In Card

iPORT SKB-GigE External Frame Grabber
Condor AGX-ORIN64-HPC

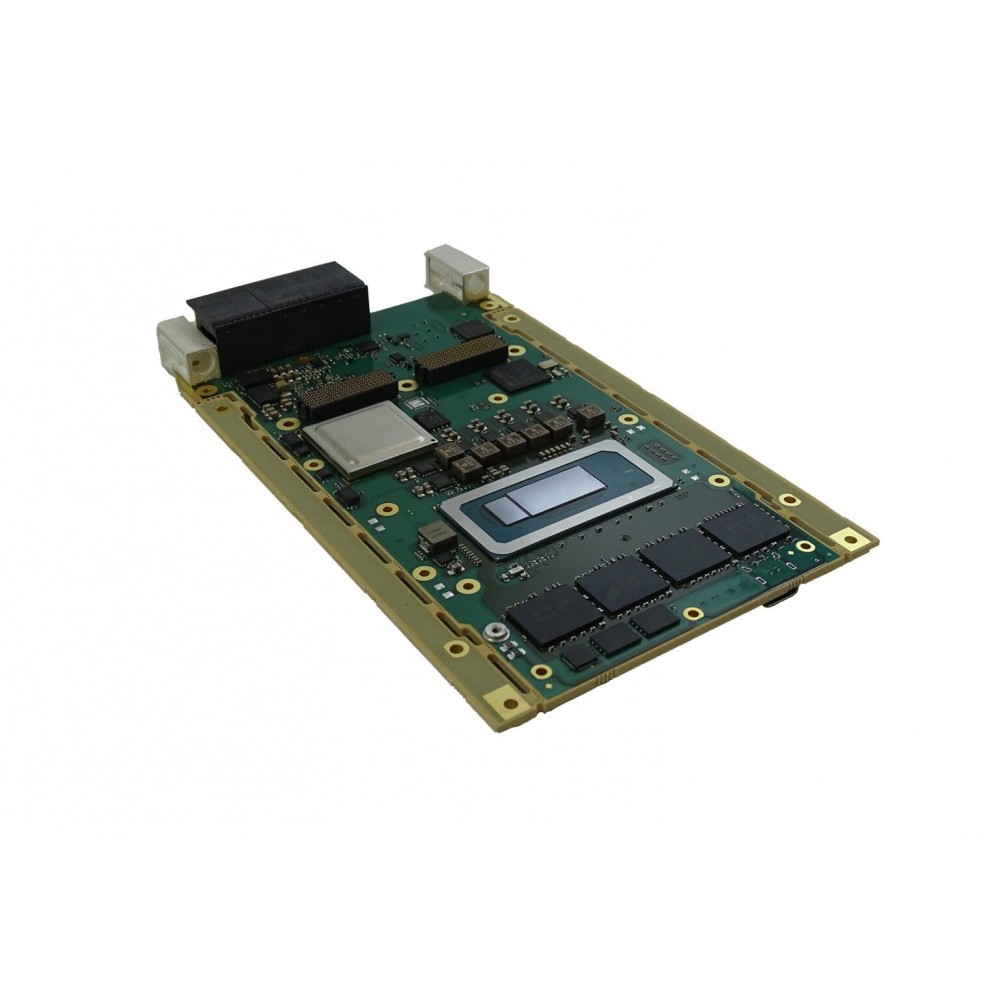

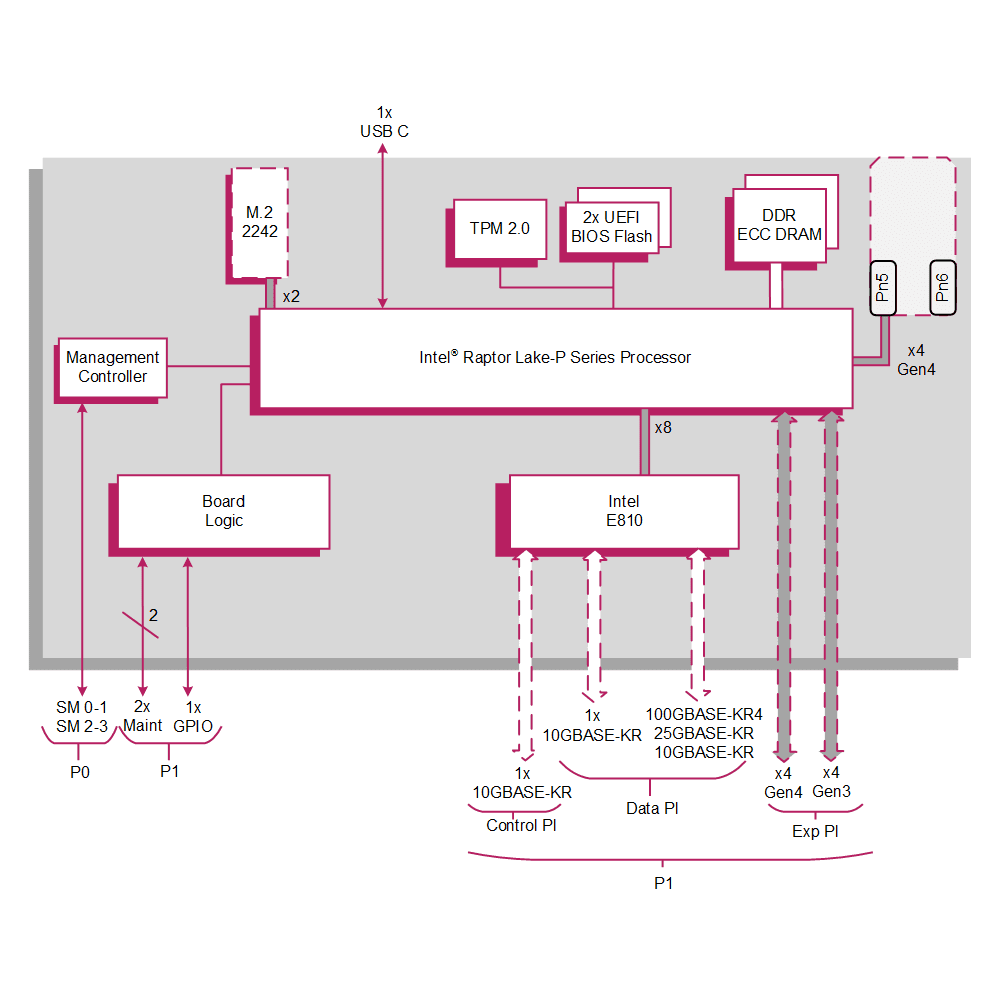

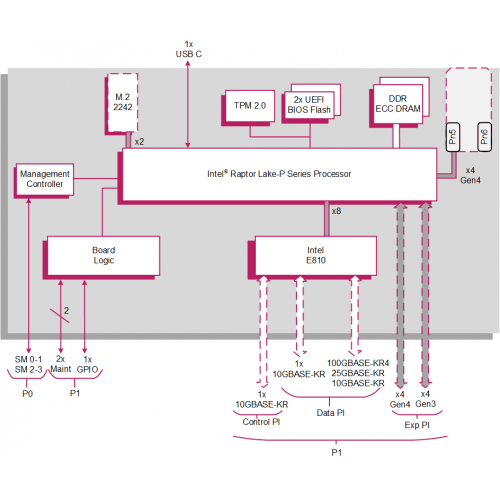

Magni is a rugged 3U VPX Plug In Card (PIC) based on the 13th Gen Intel Processor for Crypto/Storage/Acceleration needs. It is designed in alignment with the SOSA Technical Standard or compute intensive processor PICs

Read moreShow less
Request for Quote
Add to wishlist
Share
Description
  • 14-core processor for high performance
  • 100GBASE-KR4 Ethernet Data plane
  • Gen 4 PCI Express® Expansion plane for high-speed communication with adjacent boards
  • XMC Site for crypto, accelerator or storage modules
  • Up to 2TB M.2 module for direct attached storage with Write Protect and Opal 2.0 ‘data at rest’ compliance.
Read moreShow less
Specifications
Magni Rugged 3U VPX SOSA
