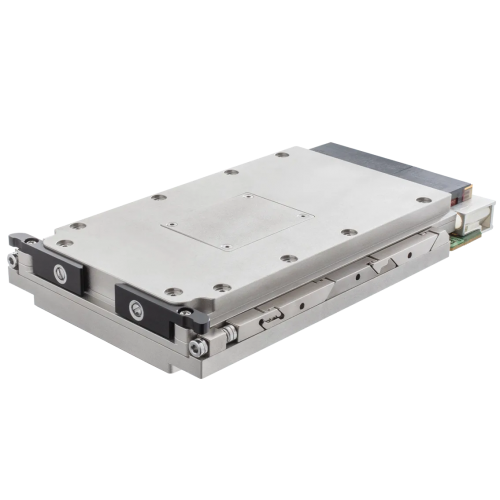

Condor AGX-ORIN64-HPC

The Condor™ AGX-ORIN64-HPC is a robust 3U VPX single board computer (SBC), engineered for autonomous and embedded edge computing systems. It harnesses the power of the NVIDIA Jetson AGX Orin 64GB (Industrial) SoM, featuring an NVIDIA Ampere architecture GPU and a 12-core Arm Cortex-A78AE CPU. With 64GB of LPDDR5 system memory, it boasts up to 205 GB/s memory bandwidth shared among the internal CPU, GPU, and accelerator engines.

Read moreShow less
Description

Suitable for Embedded Systems, Military, C5ISR, UAV and Naval.

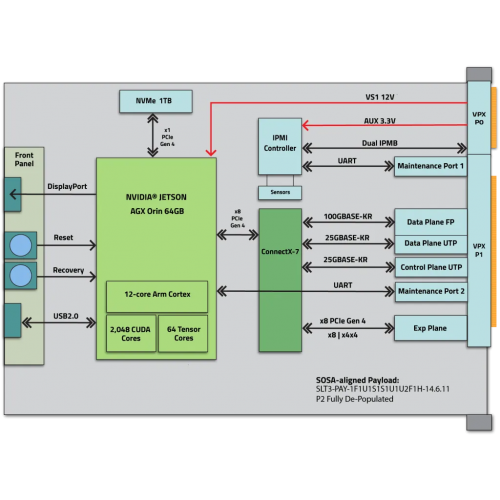

  • Graphics Processor: NVIDIA Jetson AGX Orin Industrial
  • Interface: 3U VPX, 14.6.11 Compute-Intensive Slot Profile Support, 1.0" Pitch (Conduction cooled)
  • IPMI: Dual IPMB, Tier 1 and 2 Supported, Multiple temperature and voltage sensors
  • CPU: 12-Core Arm Cortex-A78AE v8.2 64-bit CPU, 3MB L2 + 6MB L3 2048-core, 2.2GHz
  • GPU: 12-core Arm Cortex-A78AE v8.2 64-bit CPU, 3MB L2 + 6MB L3 2048-core, 2.2GHz
  • Graphics Memory: 64GB LPDDR5, 256-bit Memory Interface, up to 205 GB/s Memory Bandwidth
  • Networking: NVIDIA ConnectX-7 SmartNIC, 1x 100GbE Data Plane FP, 1x 25GbE Data Plane UTP, 1x 25GbE Control Plane UTP
  • Video Outputs: 1x DisplayPort (Optional Front Panel)
  • Storage: 64GB eMMC 5.1 Flash Storage. 8-bit, Up to 1TB NVMe (x1 PCIe Gen 4)
  • I/O: 1x USB2.0 (Optional Front Panel), 1x UART to Orin, 1x UART to IPMI Controller
  • PCIe: PCIe Gen 4 x 8 / x4x4 Interface to P1B Expansion Plane
  • Other Features: 2x NVLDA v2 Deep Learning Accelerators (1.6GHz), NVENC Video Encoder (Up to 4K60), NVDEC Video Decoder (Up to 3x 4K60 / 1x 8K30) Secure Boot
  • Profiles: SLT3-PAY-1F1U1S1S1U1U2F1H-14.6.11-0
  • Operating Temperature (MIL-STD-810): -40°C to 85°C (Rugged Conduction Cooled) Please refer to the Hardware User Guide for details on temperature/ performance characterization
  • Vibration (MIL-STD-810): 0.1g²/Hz
  • Shock (MIL-STD-810): 40g
  • Humidity (MIL-STD-810): 95% without Condensation
  • Weight: 2.696lbs (1223.1g)
  • Power Consumption: Module: 40-80W, Board Total: < 110W
Read moreShow less
Specifications
Condor AGX-ORIN64-HPC
