ECHELON - Rugged Server

Ultra High-Density Storage

The ECHELON family of servers offers unprecedented rugged storage density with up to 16 drives in a 2U server and up to 32 drives in a 4U server. This ensures critical data is secure and protected in extreme environments.

Secure Storage Problem Solver

ECHELON’s rapid removable drive carrier technology allows for the drive carrier (with 4, 8, 12, 16, 24, and 32 drives per bay) to be removed in under 30 seconds. Individual drives are hot-swappable and removable.

Maximizing Throughput

Multiple high throughput 12 Gb/s SAS-3 interfaces deliver full bandwidth to the drive carrier. Data is delivered to dual Xeon® CPUs utilizing four x16 lane PCIe slots assuring maximum throughput. Available with dual-redundancy RAID controller for data integrity and no-fail mission success.

Available in 2U and 4U sizes.

Contact us for more information.

Key Specifications:

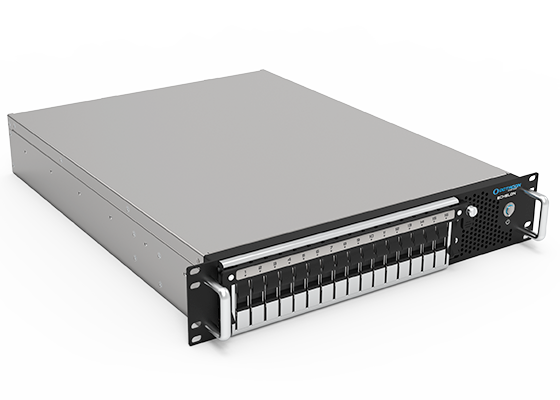

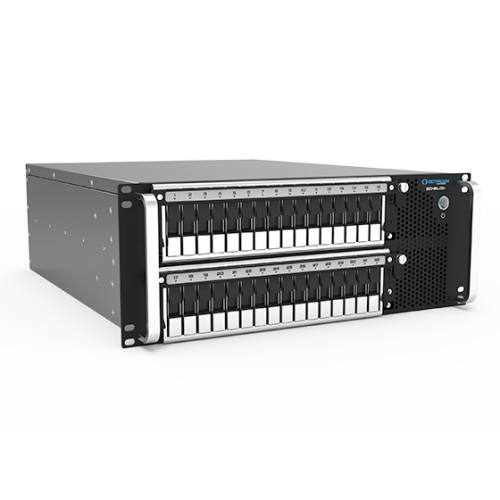

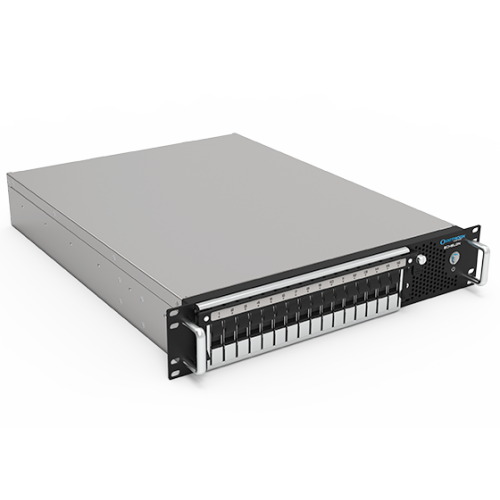

ECHELON 2U	ECHELON 4U
Up to 16 drives in a fully removable ruggedized carrier All drives are individually hot-swappable Maximum performance 12 GB/s SAS-3 drive and 6GB/s SATA backplane interfaces Mixed SAS/SATA drive capability MegaRAID® controller with CacheVault® Dual Xeon® Gold scalable CPUs, up to 44 cores Dual onboard 10Gb LAN Hot-swap, dual-redundant 1200W wide-range AC input power supplies Independently removable highreliability, high velocity fans Short depth (22-inch), 19” rackmount with rugged sliders Low-smoke, zero-halogen internal cabling MIL-STD-810G, MIL-STD-167, MIL-STD-461G qualifications Made in Canada & USA	Up to 32 drives in two fully removable ruggedized carriers All drives are individually hot-swappable Maximum performance 12 Gb/s SAS-3 drive and 6GB/s SATA backplane interfaces Mixed SAS/SATA drive capability MegaRAID® controller with CacheVault® Dual Xeon® Gold scalable CPUs, up to 44 cores Dual onboard 10Gb LAN Hot-swap, dual-redundant 1200W wide-range AC input power supplies Independently removable high-reliability, high velocity fans Short depth (22-inch), 19” rackmount with rugged sliders Low-smoke, zero-halogen internal cabling MIL-STD-810G, MIL-STD-167, MIL-STD-461G qualifications Made in Canada & USA
