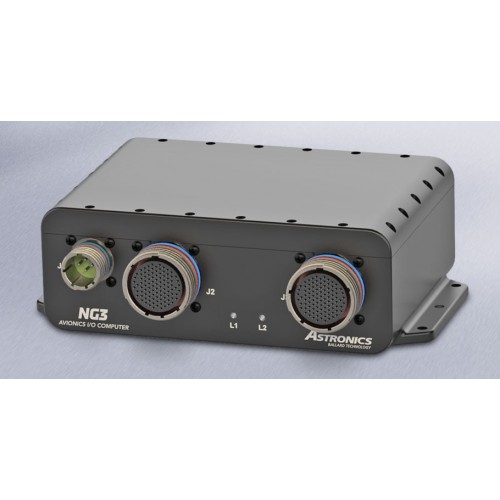

NG3 Series

Rugged, High-Density Avionics I/O Computers

Read moreShow less
Description

The NG3 Series from Astronics Ballard Technology is the next generation of flexible COTS avionics I/O computers. These compact systems combine Intel 64-bit quad core processing with an exceptional sum and variety of avionics and computer I/O. The NG3 has the power and versatility to solve control and communication challenges, and is prevalidated for rapid deployment with no up-front NRE.

Compact and Powerful

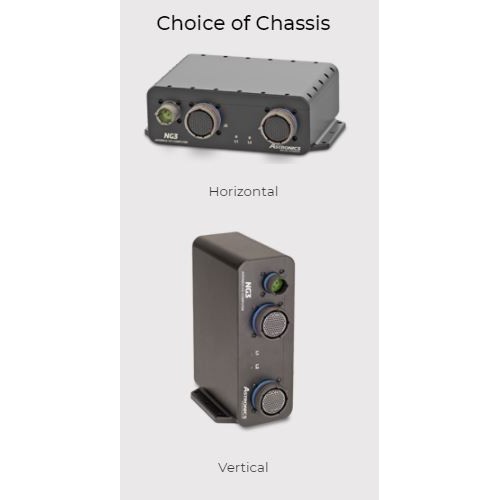

The rugged NG3 tightly integrates 64-bit processing and an extensive amount of I/O into a small, lightweight SWaP-optimized (Size, Weight, and Power) enclosure that meets military requirements for shock, vibration, temperature, humidity and pressure. It is small and light enough for use in UAVs and capable enough to handle complex, large-scale aircraft systems. It is ideal for deployment in C4ISR applications

Modular I/O Flexibility

The NG3 design incorporates multiple rugged and densely packed I/O modules. These provide great flexibility when ordering to compile the exact I/O required for your specific application. Options include MIL-STD-1553 and ARINC databus protocols, serial, discrete, USB and a managed Ethernet switch. The unit also includes 2D/3D video, audio, and a accessible mPCIe slot that provides additional user-expandable I/O capabilities.

Cybersecurity Capablities

The NG3 includes broad cybersecurity features to facilitate building your unique and effective security solution. These include security features resident in the Linux or Windows OS, discrete inputs for write protection of base non-volatile memory and removable mass storage, processor security TPM, and a sanitize discrete input to wipe all mSATA storage that is not write-protected.

Robust Software Capabilities

The included Software Development Kit (SDK) provides tools and examples to facilitate the development of software applications. The NG3 uses Ballard’s universal BTIDriver™ API, so application software for this device is easily ported to or from other Ballard products. Although the unit can be configured and run with only a few API calls, the comprehensive library includes a broad range of functions for specialized needs.

KEY FEATURES

  • High I/O density
  • Up to 2 removable mSATA SSD
  • Flexible write protect capability
  • Intel® Atom™ E3950 64-bit, quad core processor
  • Low SWaP (Size, Weight, Power)
  • Wide range of avionics and computer I/O:
  • - MIL-STD-1553
  • - ARINC 429, 708, 717
  • - Serial, CANBus, Discrete
  • - Ethernet, USB 2.0 Host
  • - 2D/3D Video, Audio
  • - mPCIe expansion option
  • For Helicopter, fixed wing, UAV, and ground mobile applications
  • Highly reliable, prevalidated COTS solution
  • Reduces project risk, time, and cost
