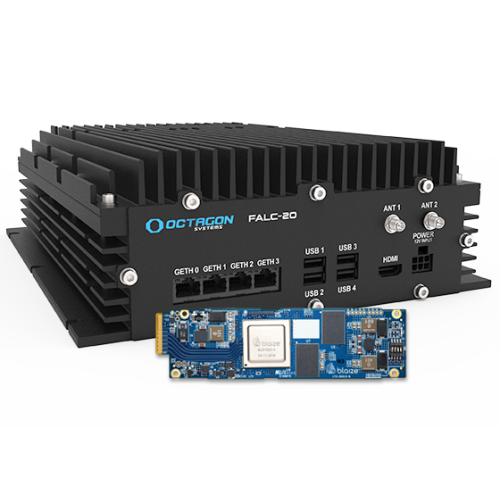

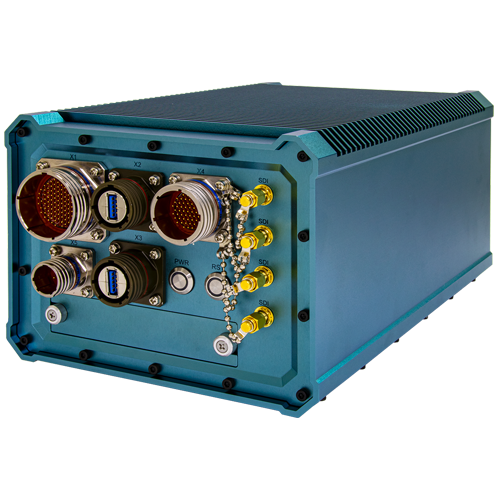

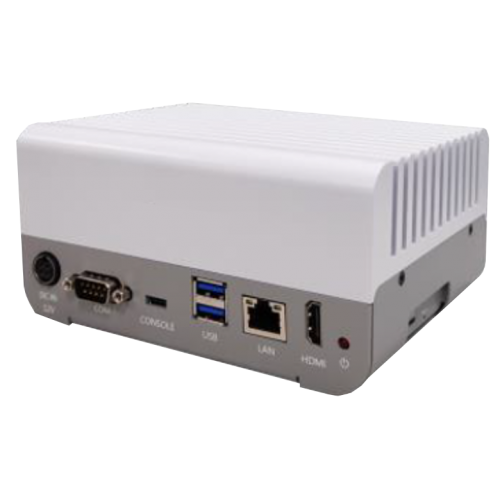

FALC - Small Form Factor (SFF) Computer

Rugged GPU mobile computers for video-processing and AI workloads at the edge

Computer Vision & AI-Specific Silicon

In order to address video processing & AI requirements, the FALC family of products have advanced GPU processing capabilities. The FALC modular architecture is designed to use GPUs that that provide superior performance-per-watt ratio (TOPS / Watt).

Stay Connected

Used in stationary and highly mobile edge use cases where connectivity to other devices, equipment, and sensors is critical. The FALC products have a variety of wired and wireless connectivity options making them IoT and V2X ready.

Advanced Thermal Management

Increased compute power = higher thermal output, requiring more advanced cooling solutions to ensure deployment reliability. Our FALC products use complex conduction (including liquid) and convection cooling methods. Additionally, if the application allows, external IP-rated fans can be included to increase cooling.

Extremely Rugged

Built with militarized connectors and fan-less internal designs, the FALC products have IP ratings to withstand dust, sand, and water. Additionally, the connectors have the benefit of secure-locking to ensure the wire harnesses do not come loose under heavy shock & vibration conditions.

Key Specifications:

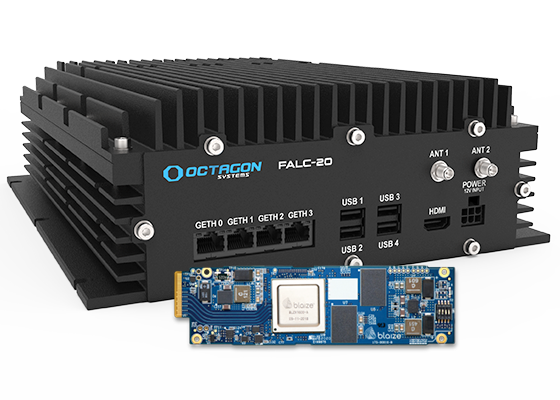

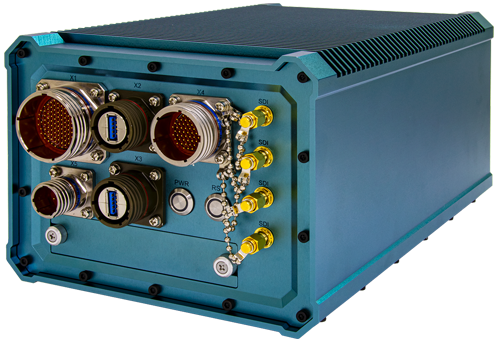

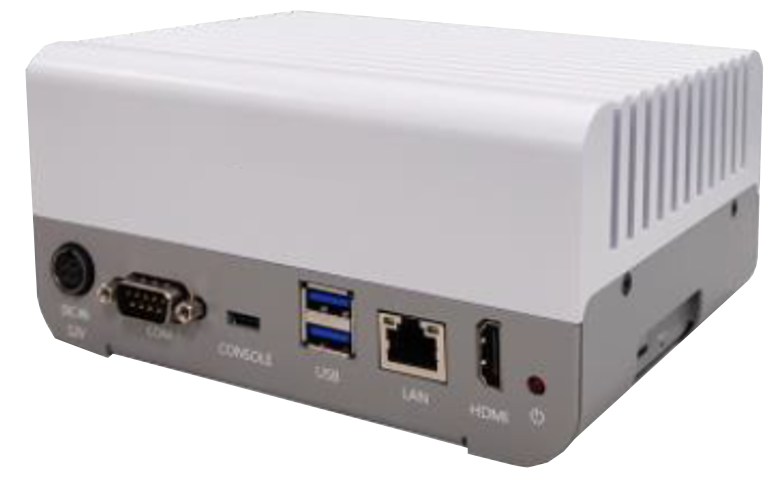

FALC-2	FALC-20 (Fire-FALC)	FALC-40

Small form factor (160 x 125 x 80mm) Compatible with the Blaize P1600 System on Module with: » Dual ARM Cortex A53 » One (1) Blaize El Cano 16TOPs GSP H.264/H.265 Video Encoder Decoder 2-20 HD 1080P cameras dependent on fps requirements Supports both commercial and industrial temperature range	Multiple Small Form Factors options Ultimate flexibility: » Expansion for GSP, memory, & wireless interfaces » COMe Type 6 for processor optimization (x86, ARM, etc.) » Two cooling methods available Up to 4 Blaize® Xplorer™ X1600E Accelerators providing up to 64 TOPS and H.265 & H.264 video encode and decode 5-40 HD 1080P cameras dependent on fps requirements	Multiple 9th gen Intel® i7 and XEON processing options (25W and 45W TDP) with up to 6 cores @ 4.5GHz Options for ½ ATR and ¾ ATR size chassis for rugged airborne applications Option for four channel HD-SDI video capture module Option for MIL-STD-1553 and ARINC 429 avionic interfaces Wide range DC MIL-STD-704 / 461 / 1275 power supply IP66 Rating
