Adapt-R: DVI or VGA

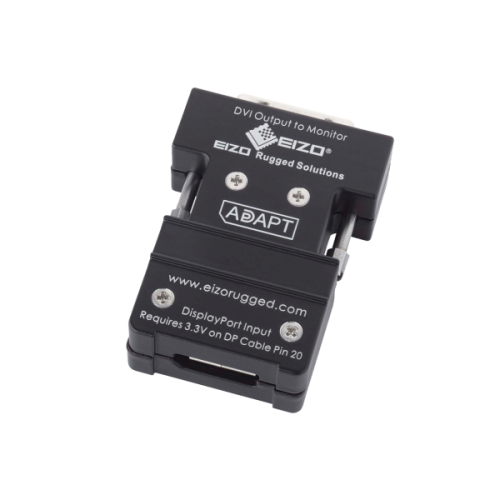

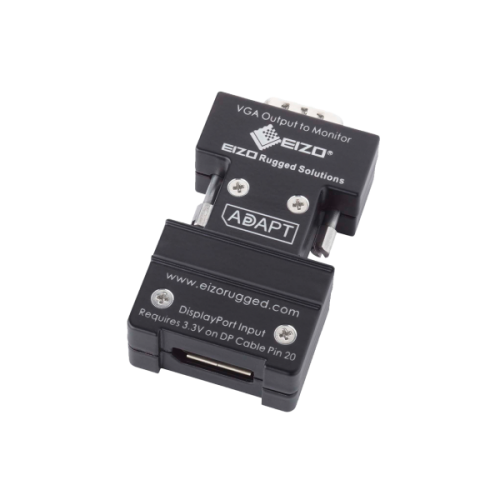

The Adapt Series products are a family of video format converters that convert DisplayPort into traditional video formats such as DVI or VGA. The rugged product meets military level shock and vibration (MIL-STD-810) requirements and can operate in extended temperature environments (-40°C to 85°C). Power to these active devices is available on the display port cable, no external power is required.

Customers often need to support several legacy monitors with various input formats. Support of such monitors may require special graphics/video boards, incurring NRE, long lead-times, etc. Alleviating the need for board re-designs, the Adapt video format converters enable the use of the newer off-the-shelf rugged graphics cards with DisplayPort outputs to support DVI or VGA.

Applications:

• Military
• Avionics
• Surveillance
• UAV
• Naval
• ISR
• Embedded Systems

Seamless Integration

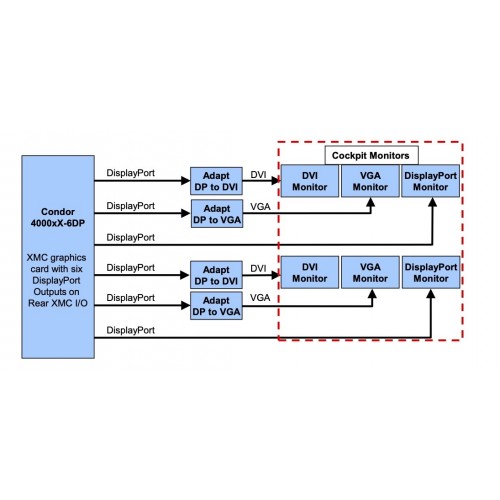

The Adapt video format converters are designed to work with all EIZO Rugged Solutions’ Condor graphics cards. For example, the Condor 4000xX-6DP XMC graphics card has six DisplayPort outputs available on rear XMC I/O. These outputs can be “adapted” to provide any combination of six video outputs – DVI or VGA, as desired for the specific application. Another example is the Condor 4000xF, which outputs a DisplayPort output on the front panel that can be easily converted with an Adapt to support DVI or VGA. The Adapt products can also be customized to support other connector types, such as male or female gender or circular connectors such as MIL-DTL-38999.

Product Specifications

• Video Outputs: Single-Link DVI or VGA (Supports standard VESA resolutions from 640x350 to 1920x1200@60.)
• Video Inputs:         DisplayPort (DP_PWR pin 20 required)
• Power Input:         DisplayPort cable provides power. Requires GPU and cable to support pin 20 (DP_PWR, 3.3V, 500mA)
• Mating Connector Gender: Male or Female
• Op. Temp (MIL-STD-810): -40°C to 85°C
• Vibration (MIL-STD-810): 0.1 g2/Hz
• Shock (MIL-STD-810):           40 g
• Humidity (MIL-STD-810): 95% Without Condensation
