EIZO Rugged Solutions
Rugged DisplayPort to DVI or VGA Video Converter
Brand:
Hydra 1004R
Rugged 1x4 video splitter designed to operate for military level MIL-STD-810 shock, vibration, and temperatures (supports up to 12G-SDI).
Hydra 1004R
Rugged 3G-SDI 1x4 Video Splitter

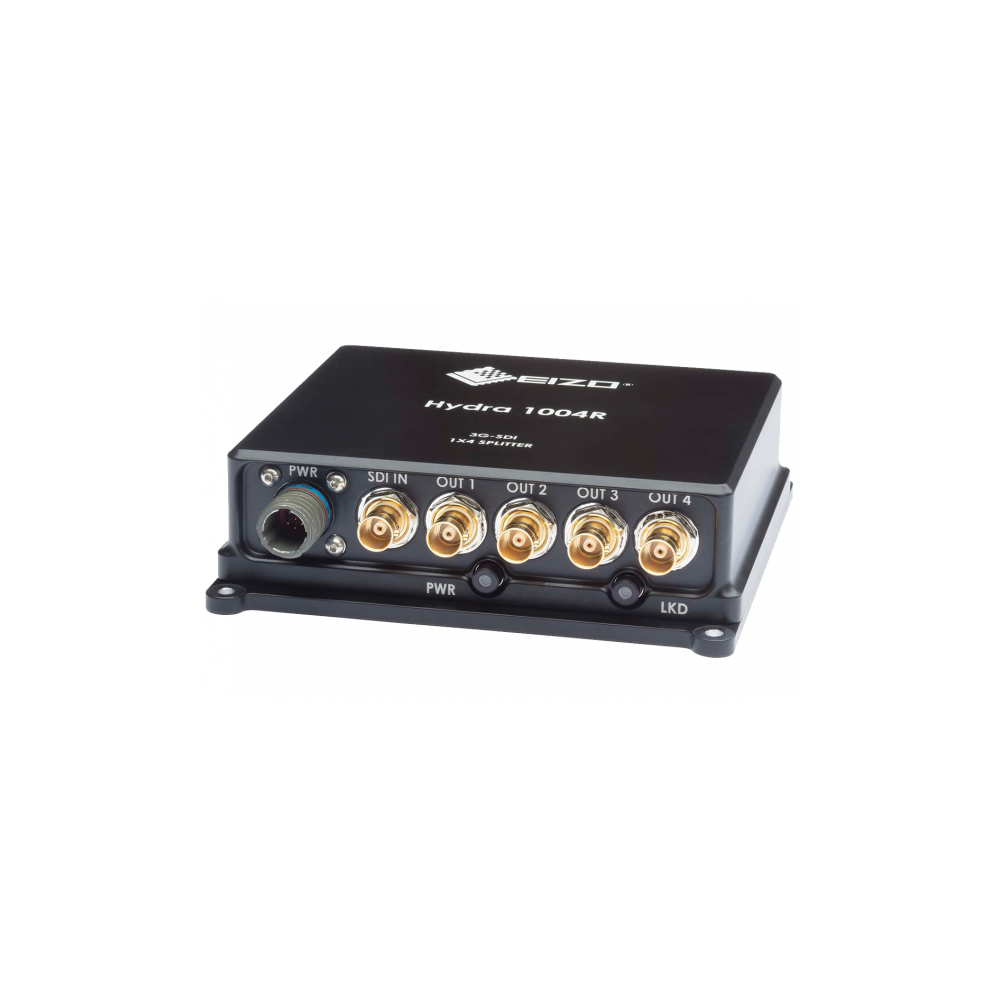

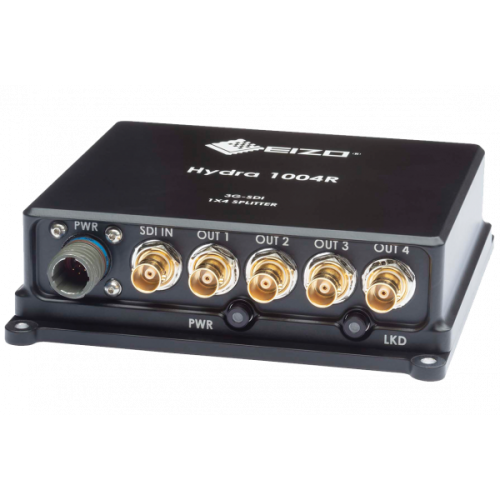

The Hydra 1004R is a rugged 12G-SDI 1×4 video splitter designed to operate in harsh environments with extended temperature (-40˚C to 85˚C), shock (up to 40 g), and vibration (0.1g²/Hz) to be compliant with MIL-STD-810. It splits a 12G-SDI, HD-SDI, or SD-SDI video input across four 12G-SDI outputs (BNC) for viewing or distribution.
1x4 Video Splitting
12G-SDI 1×4 rugged video splitting with signal regeneration.
Front Facing Connectors
One 12G-SDI input (BNC) & four 12G-SDI outputs (BNC).
Built to Withstand
MIL-STD-810 compliant and SWaP efficient
3G-SDI Signal Regeneration
The Hydra 1004R features signal regeneration which re-clocks the 12G-SDI signal to ensure that the video quality is not compromised. All connectors including power are front-facing for ease of mounting. Power and SDI link status LEDs are visible on the front of the unit.
Applications:
- Military
- Avionics
- Surveillance
- UAV
- Naval
- ISR
- Embedded Systems
