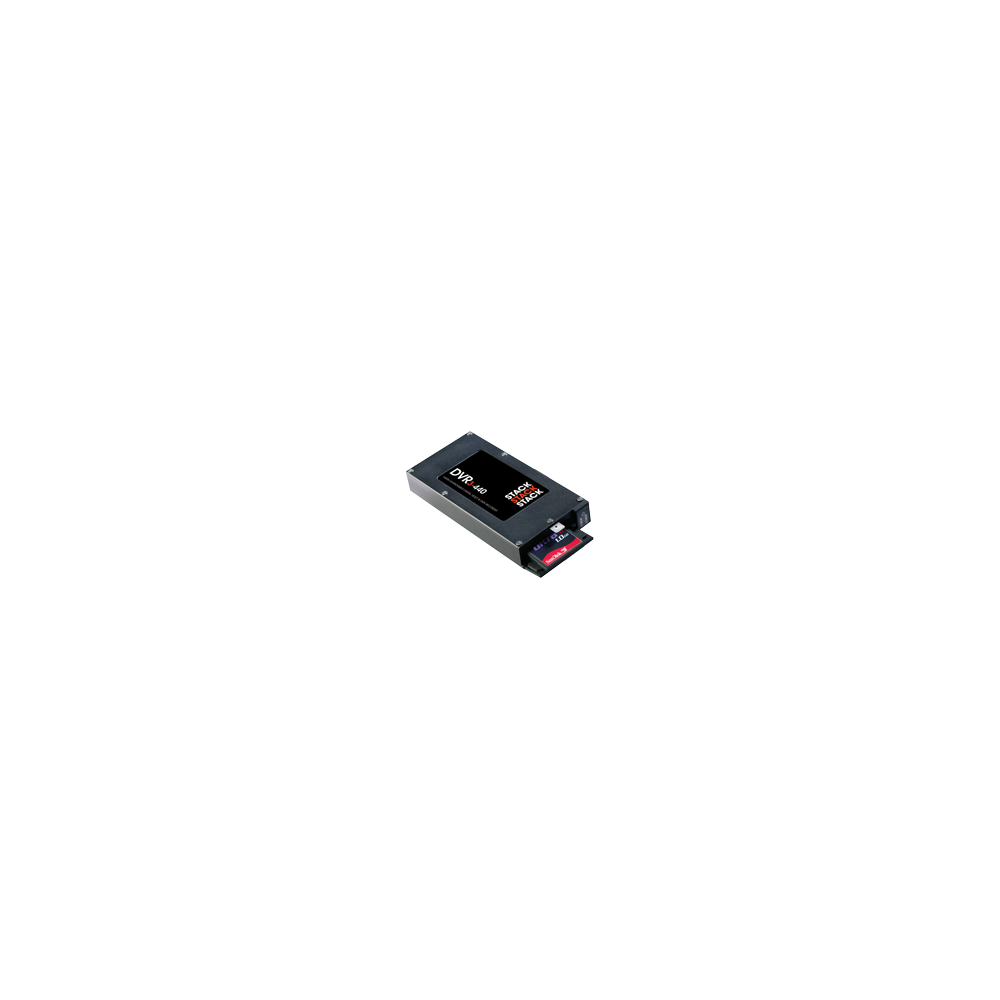

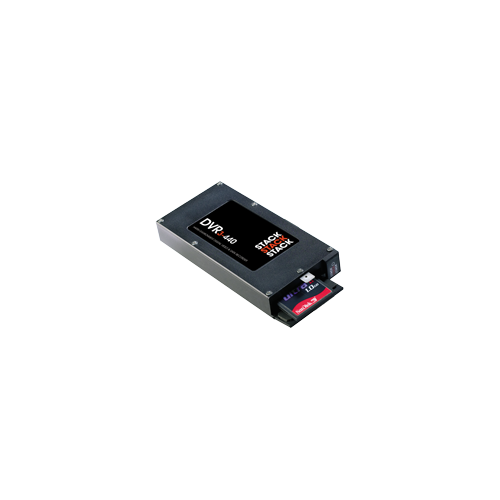

DVR3-440

DVR3-440

Digital Video & Data Recorder with 4 camera inputs

ST9377 PAL/NTSC

For the most demanding applications, the DVR3-440 can be used in harsh environments including high vibration and extreme temperatures.

The unit is waterproof to IP67 and boasts an extended operating temperature range of -20 to +80 Celsius. The 20 Mbps maximum fixed bit rate produces unmatched video quality.

The Brownout protection option ensures recording continuous despite power loss of up to a second.

Features:

• 9 Fixed (1 Mbps Min. 20 Mbps Max.).
• 9-140 Mins/Gbyte @ full resolution.
• 128 GB maximum card size.
• 9 to 20V DC powered.
• Extended voltage range option of 20V to 50V.
• -20 to 80 Celsius (operating temp. range.)
• External status LED.
• Fully sealed to IP67.
• Mil-type AS connectors.
• 20g continuous vibration rating.
• 50g shock rating.
• Real-Time date & time overlay.
• No video loss at power failure option.
• Brownout Protection (option) provides up to 2 seconds of brownout protection (dependent on camera load). Extends recording after power loss by up to 1 second.
