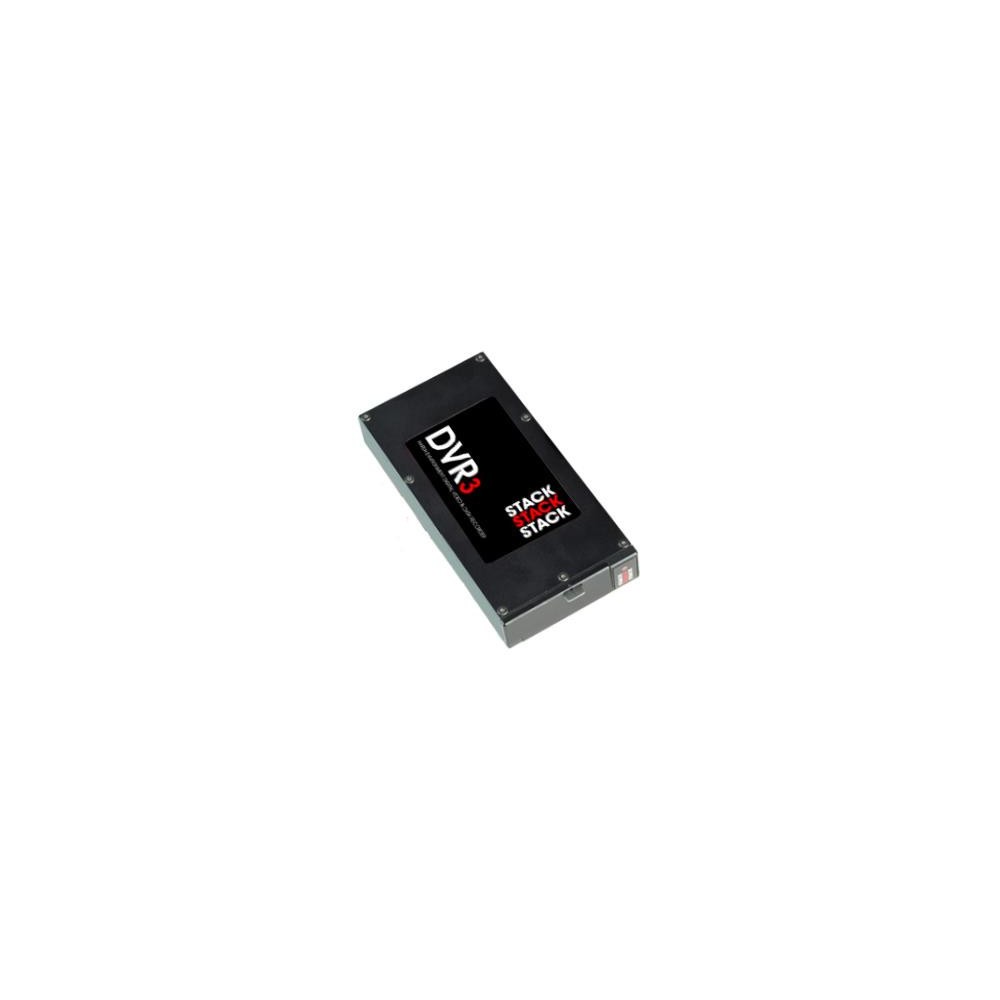

DVR3-240

DVR3-240

Digital Video & Data Recorder with 4 camera inputs

(ST9373)

Overview

Stack’s new range of Digital Video Recorders (DVRs) can be used as a conventional DVR to record video and audio. They can also record data as well as video, in one compact unit, for the ultimate in Synchronized Video-Logging.

Stack DVRs can be connected directly to any Stack Dash Display or Data logging system by CAN Bus. Up to 128 channels of data, including GPS and the internal 3-axis G-sensor channels, can be recorded together with high quality MPEG-2 video and audio direct to a Compact Flash (CF) card.

The video and data recordings can be analysed together in the supplied Stack DataPro analysis software. Video recordings can also be played back by any PC media player or archived and viewed on a DVD player.

Stack’s range of DVRs combine ruggedness, reliability and recording quality with a slim, lightweight design that’s perfect for all harsh environment

applications.

Highlights

• Video-Logging with synchronized recording of vehicle data channels.
• CAN bus interface for direct connection to Dash Displays and Logging Systems or ECUs.
• Data recording of up to 128 data channels at 1-500Hz sampling rates.
• Solid-state, no moving parts, ensuring reliable operation year after year.
• User configurable bit-rate up to 20 Mbps.
• Up to 4 fully configurable inputs.
• 16:9 Widescreen or 4:3 screen ratios.
• 0 to 70ºC (32 to 158ºF) operating temperature range.
• 128GB maximum card size.
• Over 36 hours of high quality, full resolution recording (subject to CF card size).
• 9 to 20V DC powered.
• Fully sealed to IP67.
• Mil-type “AS” connectors.
• External status LED.
• Sealed memory card door (when closed).
• Real-Time date & time overlay.
• 3 axis g-sensor data overlay.
• Continuous Loop Recording modes.
• Event Recorder mode, with pre- and post-trigger record periods.
• Automatic “Alarms” start/stop recording using built-in g-sensor or any data channel.
• Connectors: 3 x 9W DDAS.
