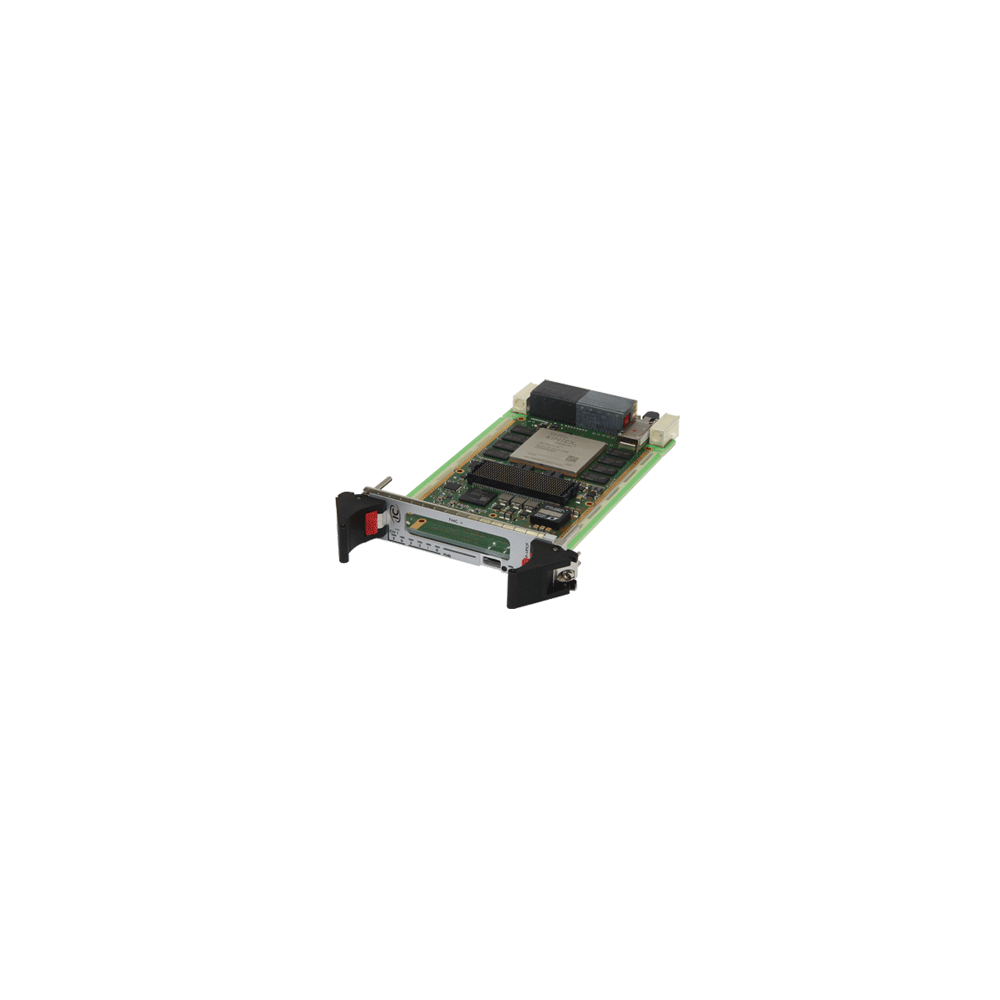

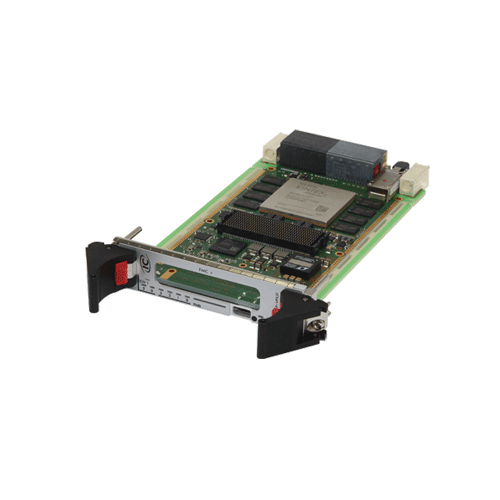

3U VPX VITA 66.5 FPGA board with FMC+ Site

Based on the latest Xilinx 20nm FPGA family, the IC-FEP-VPX3f enhances the front-end processing (FEP) product line of Interface Concept, as the first VITA 66.5 compliant FPGA board on the market today.

Read moreShow less
Description

Based on the latest Xilinx 20nm FPGA family, the IC-FEP-VPX3f enhances the front-end processing (FEP) product line of Interface Concept, as the first VITA 66.5 compliant FPGA board on the market today.

The Kintex ® UltraScale™ FPGA provides a better performance/power consumption ratio compared to previous FPGAs, and makes the IC-FEP-VPX3f the perfect solution for applications requiring DSP intensive processing in a 3U VPX form factor.

The IC-FEP-VPX3f and other IC building blocks (Intel® and PowerPC SBCs, Ethernet Switches & Routers, FMC) running our Signal Processing Reference Design, are ideal platforms for users wishing to streamline development and concentrate their efforts on core strategic tasks.

  • 3U VPX - VITA 66.5
  • 1*Kintex® UltraScale™ FPGA
  • 2* DDR4 banks (up to 4GB each)
  • 1*Artix®-7 control node
  • 1*FMC+ site (VITA 57.4)
Read moreShow less
Specifications
IC-FEP-VPX3f
